Components and graphic details may differ from the actual model.

Mahle X30 250 Wh - 105 2x12spYUBN8

E-Oltre

Recommended Retail Price

€ 5.250

Trova il rivenditore più vicino

Hai bisogno di aiuto?

Maintenance

Find out how to take care of the product

Manuals

Everything you need to know about your bike

Legal warranty

Discover the terms and conditions

Conventional lifetime warranty

Find out all the details about the terms and conditions of the conventional lifetime warranty

Motor Unit

Motor

Mahle X30 Drive unit, 40Nm, 250W iWoc ONE head unit

Battery

Mahle ‘iX250w Battery Pack

Frameset

Frame

Oltre e-road carbon, fully internal cable routing, mechanic and electronic groupsets, BB pressfit, disc brake flat mount, OLD 135mm sizes: 47, 50, 53, 55, 57, 59, 61

Fork

Full carbon aero road ICR, integrated head , disc brake flat mount, thru axle 12×100

Headset

Acros / FSA, internal cable routing ICR

Drivetrain

Crankset

Shimano 105 12 speed, FC-R7100, hollowtech 2, 50x34T Crank Length: 47, 50, 53 – 170mm 55, 57, 59 – 172.5mm 61 – 175mm

Shifter

Shimano 105 12 speed

Cassette

Shimano 105 12 speed, 11-34 11-12-13-14-15-17-19-21-24-27-30-34T

Rear Derailleur

Shimano 105 12 speed RD-R7100

Bottom Bracket

Mahle torque sensor BB

Front Derailleur

Shimano 105 12 speed FD-R7100

Chain

Shimano 105 12 speed

Brakes

Brakes

Included in the shifter

Rotor

REAR: Shimano RT86 6bolt,160mm / FRONT: Shimano MT800, centerlock 160mm

Cockpit

Stem

Velomann Viper, Alloy 6061, raise – 7°, semi-integrated cable routing Ext:90mm-47cm, 100mm-50~53cm, 110mm-55~57cm, 120mm-59~61cm

Handlebar

Velomann Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm Size: 400mm-47~53cm,420mm-55~59cm,440mm-61cm

Grip

Bianchi Hexagon tape, 2.5mm thickness, black

Wheels

Wheels

Velomann Plutonium, carbon, 21-622, profile 50mm, 24hole front, 32 hole rear, tubeless ready

Tire

Vittoria Rubino V 28-622 TLR, G2.0, 100TPI

Saddle

Seatpost

Full carbon aero shape, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenghts: 300mm =47> 50cm; 350mm= 53>61

Saddle

Velomann Gnd Full-fit, carbon steel rail, 262×145

Seatpost Clamp

Included in the frame

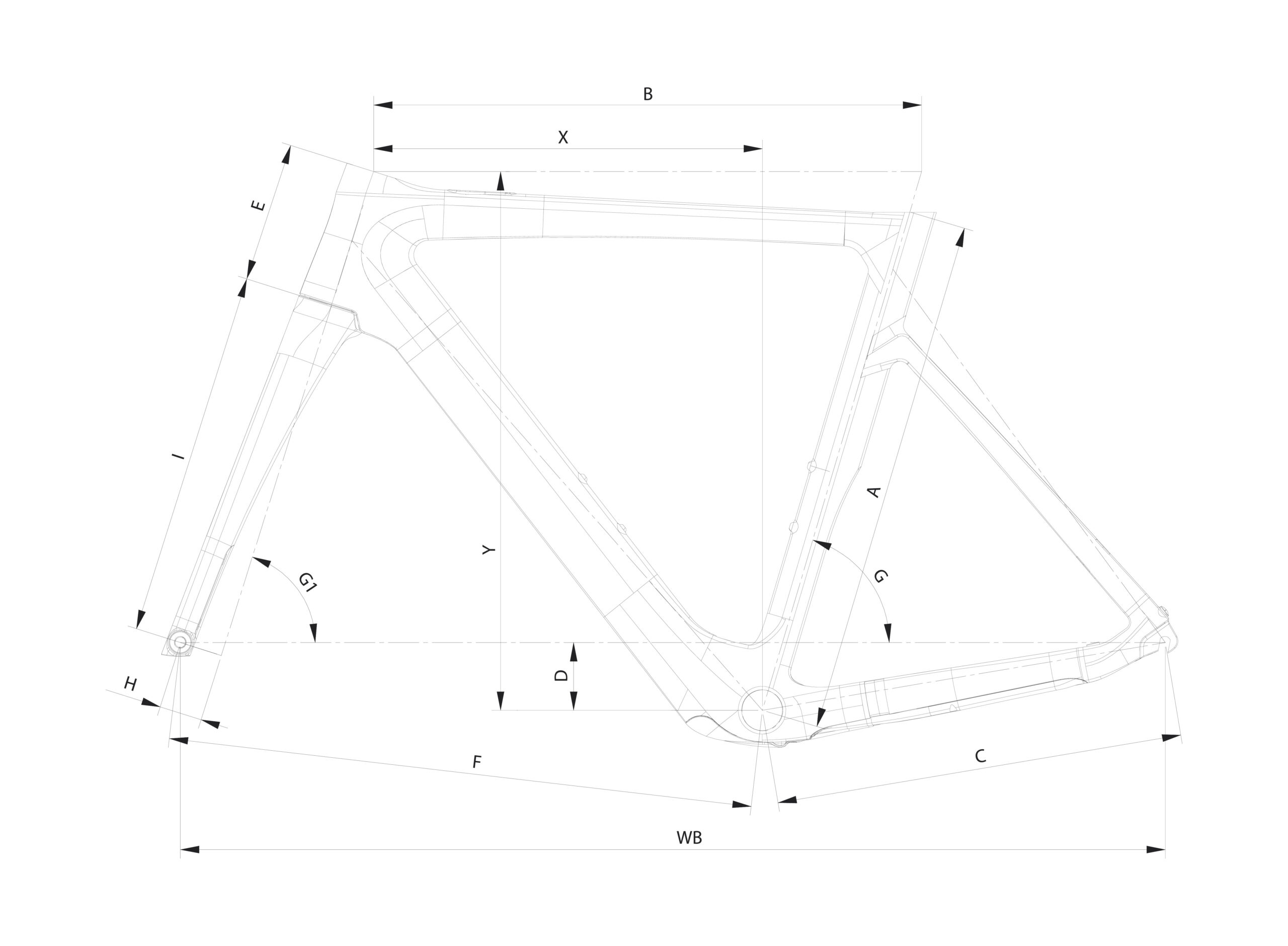

SIZE A B C D E F G G1 H I X Y WB
470 440 515 410 58 105 581 74.5° 70.5° 43 368 379 490 982
500 470 525 410 58 110 582 74.5° 71.5° 43 368 387 499 983
530 500 535 410 68 125 583 74° 72° 43 368 385 525 984
550 520 550 410 68 140 588 73.5° 72.5° 43 368 390 541 988
570 540 560 410 68 155 593 73.5° 73° 43 368 395 557 994
590 560 575 412 68 175 603 73° 73° 43 368 397 576 1006
610 580 585 414 68 195 607 72.5° 73° 43 368 398 595 1012

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

color

ZQ – CK16 Metallic / Matt
