Components and graphic details may differ from the actual model.

Chain ST 29'' - OLI Edge Akkuvision 630 Wh - Deore 1x10spYTB5E

E-Omnia T-Type

Recommended Retail Price

$2 866.50

Trova il rivenditore più vicino

Hai bisogno di aiuto?

Manutenzione

Scopri come prenderti cura del prodotto

Manuali

Tutto quello che devi sapere sulla tua bici

Garanzia legale

Scopri i termini
e le condizioni

Garanzia convenzionale a vita

Scopri tutti i dettagli sui termini e le condizioni della garanzia convenzionale a vita

Motor Unit

Motor

OLI Edge, 90Nm, 250W

Battery

Internal battery 630Wh

Display

Display High Vision

Frameset

Frame

E-OMNIA T-Type Step-through chain drive ALU
sizes: 43-48-53
– 12x148mm thru-axle dropouts (special dropout for
external derailleur)
– Post mount 180 disc brake type
– Internal cable routing in DT
– Frame lock compatible
– 625Wh compatible
– custom rear carrier integrated in the frame design

Fork

Sram XCM34-Boost NLO DS 29″, 120mm travel, 1.5″
tapered HT, w/ 15AH2-110 TA, minimum 160mm rotor,
maximum 203mm rotor, 34mm stanchions, Coil w/
preload adjuster

Headset

NO.55R/558 1.5″

Drivetrain

Crankset

FSA CK-320/IS Die cast AL crank 170mm ISIS

Shifter

Shimano, SL-M4100-R, DEORE, RIGHT, 10-SPEED

Rear Derailleur

Shimano, RD-M4120, DEORE, SGS 10/11-SPEED

Bottom Bracket

Included in the motor

Chain

KMC e10S NPBK

Cassette

Sunrace, 10sp, 11-42T

Brakes

Brakes

Shimano MT-200

Rotor

CDM-80FD, 180mm

Cockpit

Stem

Velomann, diam. 31,8, size: 90mm for SM, 110mm for
LG, MD

Handlebar

Velomann, 31.8/680mm, RISE 20MM, SWEEP 15°

Grip

Hermans Grip 130

Wheels

Wheels

Velomann Tubeless Ready 29″, 25-622

Tire

Vittoria e-Randonneur, 50-622

Saddle

Seatpost

Velomann, 31.6*350, suspension seatpost

Saddle

Velomann, steel rail, no clamp, 285x187mm

Accessories

Pedals

VP VPE-527 ED, axle 7mm boron steel, EPB system
size 116x103mm with reflectort

Rear Carrier

Custom rear carrier integrated into the frame design

Mudguard

SKS PET Mudguards A65 R /28

Rear Light

Spanninga custom integrated light

Kickstand

Velomann load 35kg

Front Light

Spanninga custom integrated light, 40 lux

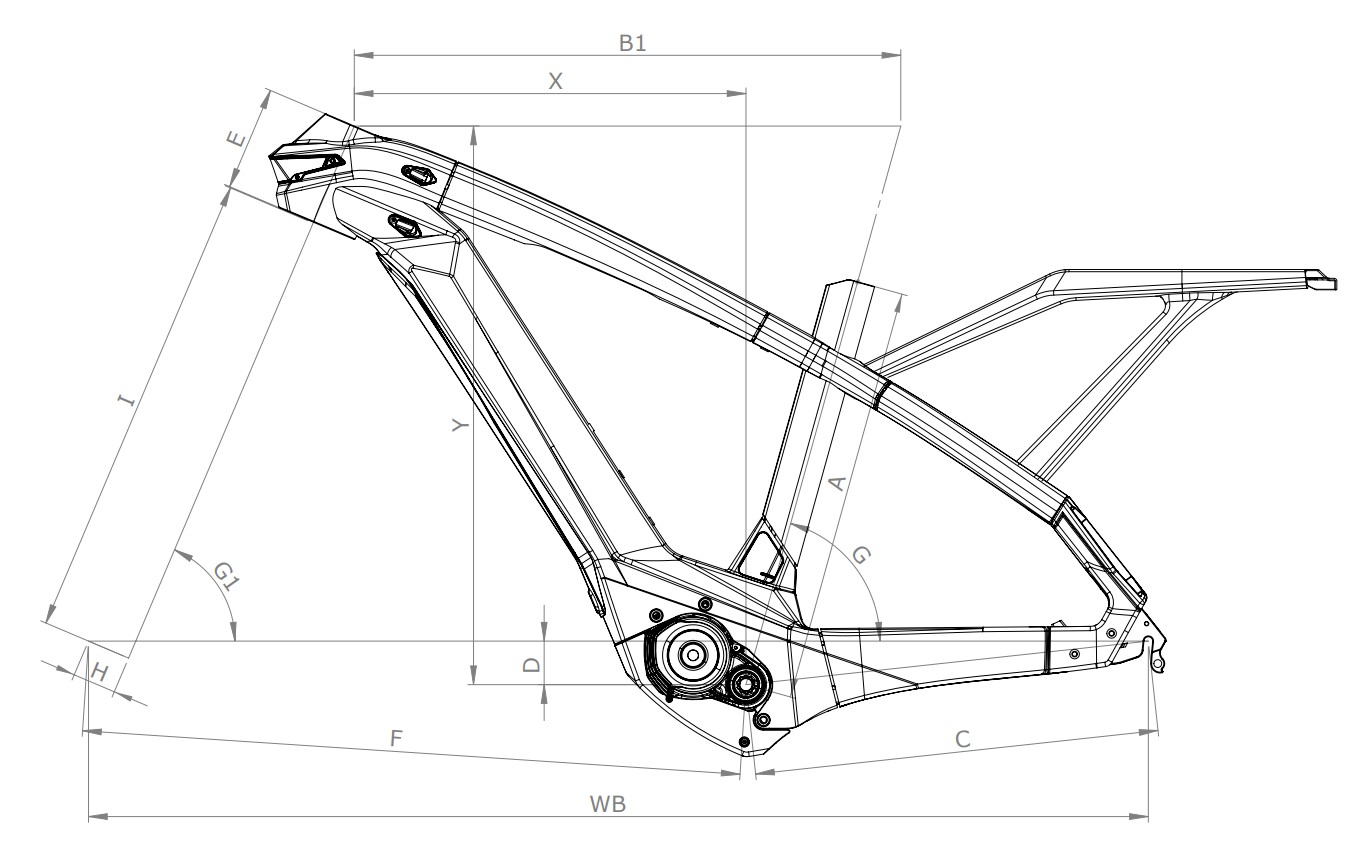

SIZE A B1 C D E F G G1 H I X Y WB
M 440 607 465 50 116 732 74.5° 67° 47 541 430 637 1192
L 480 628 465 50 121 753 74.5° 67° 47 541 450 641 1214
XL 520 649 465 50 126 775 74.5° 67° 47 541 470 646 1236

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

color

4D – CK16 / Dark Celeste, 4E – Metal Brown / Graphite, 4F – Metal Grey / Graphite
