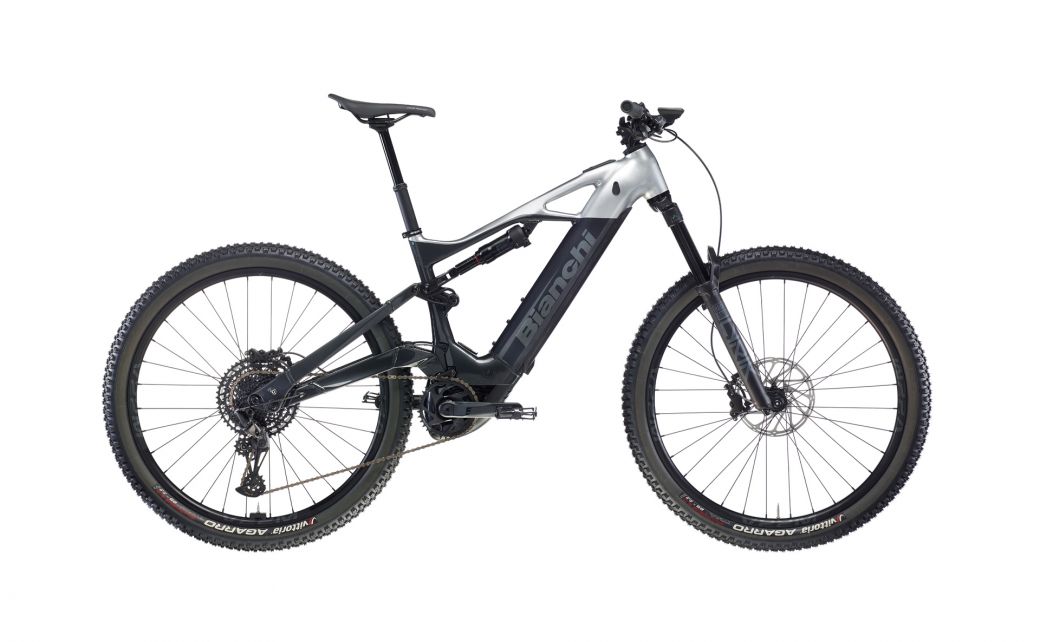

Bianchi E-Vertic FX 9.1

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX BDU3840 - Kiox 300

  2. Batterie

     Bosch Powertube 800 Wh

• Frameset

  1. Rahmen

     Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53

  2. Gabel

     RockShox Lyrik 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake

  3. Dämpfer

     RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment

  4. Headset

     FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system

• Drivetrain

  1. Schalthebel

     Sram SX Eagle, single click

  2. Schaltwerk

     Sram SX Eagle, 12 sp

  3. Kurbelgarnitur

     FSA CK-745/IS, Aluminium forged - 165 mm Crank length: 165 mm

  4. Kette

     Sram SX Eagle, 12 sp

  5. Kassette

     Sram PG-1210 Eagle, for HG body, 11-13-15-17- 19-22-25-28-32-36-42-50T

• Brakes

  1. Bremsen

     Sram DB4, 4 pistons calipers, mineral oil

  2. Bremshebel/griffe

     Sram DB4, included in the brake

  3. Bremsscheibe

     FRONT: Sram Centerline, 200 mm / REAR: Sram Centerline, 200 mm

• Wheels

  1. Laufradsatz

     Velomann Rim: V22M, 622x28, 32 hole, Tubeless ready; Hubs: Shimano TC500 thru xale

  2. Reifen

     Pirelli Scorpion 29x2.6 E-MTB R, 60TPI

• Cockpit

  1. Vorbau

     Velomann 1" 1/8, 35 mm barbore Size: 50 mm

  2. Lenker

     Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm

  3. Griffe

     Herrmans Luna lock 130 mm

• Saddle

  1. Seatpost Clamp

     Bianchi Custom

  2. Sattelstütze

     Velomann Diameter 31.6 mm, Internal cable routing length: 100 mm - SM, 125 mm - MD, 150 mm - LG/XL

  3. Sattel

     Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
