Components and graphic details may differ from the actual model.
XR24 | 24'' DISC | TOURNEY 8SPYTB7R
XR24 24” DISC
Recommended Retail Price
€ 570
Hai bisogno di aiuto?
Maintenance
Find out how to take care of the product
Manuals
Everything you need to know about your bike
Legal warranty
Discover the terms and conditions
Conventional lifetime warranty
Find out all the details about the terms and conditions of the conventional lifetime warranty
Frame
Frame kit
Bianchi XR24, Aluminium, Disc Brake, for 24″ wheels sizes 33
Fork
Zoom Suspended fork for 24″, 50mm travel
Headset
NECO Headset for 1-1/8″
Drivetrain
Shifters
Shimano SL-M315, Tourney 8sp
Crankset
32T, lenght 152mm
Rear Derailleur
Shimano RD-TY800, Tourney 8sp
Cassette
Shimano CS-HG31, 8sp, 11-13-15-17-20-23-26-
30T
Chain
KMC 8sp
Brakes
Brakes
Shimano BR-TX80 mechanical disc brake, Tourney
Rotor
Shimano SM-RT10, 160 mm
Brake lever
Shimano BL-T4000 for mechanical disc brake
Cockpit
Stem
Bianchi Stem alloy, lenght 50mm
Handlebar
Bianchi Width 580mm, barebore 25.4mm, rise 16mm, backsweep 9°
Grips / Extensions
Bianchi Rubber grips
Wheels
Wheels
Mach1 ER20 24″, 32 holes
Tire
Rubena Ocelot, 24×2.1″, 54-507
Saddle
Seatpost
SP-7019, 27.2mm, 0mm seatback
Saddle
DDK Memory foam saddle

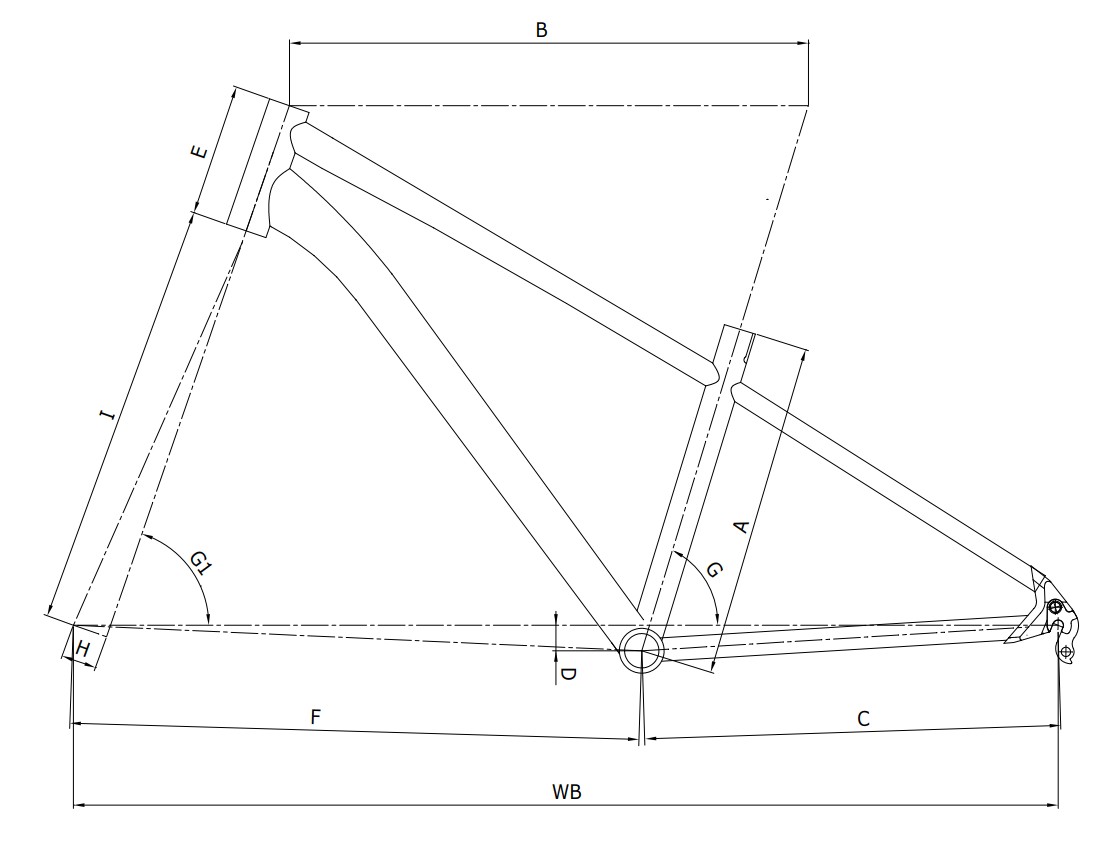

| SIZE | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
| 24” | 330 | 510 | 410 | 25 | 130 | 559 | 73° | 71° | 34.5 | 410 | / | / | 968 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | 7U – CK16 / Silver Graphite, 7X – Acid Yellow Full Glossy, 8A – Carina / Silver Full Glossy |
|---|
