Components and graphic details may differ from the actual model.

LIMITED EDITIONYVBFO

Oltre RC Founder Edition

Recommended Retail Price

$25 605.45

Trova il rivenditore più vicino

Hai bisogno di aiuto?

Manutenzione

Scopri come prenderti cura del prodotto

Manuali

Tutto quello che devi sapere sulla tua bici

Garanzia legale

Scopri i termini
e le condizioni

Garanzia convenzionale a vita

Scopri tutti i dettagli sui termini e le condizioni della garanzia convenzionale a vita

Frameset

Frame

Oltre carbon aero shape, electronic drivetrain only, headset 1.1/4-1.1/4,BB-PressFit 86,5x41mm, integrated seat clamp, for flat mount caliper, internal cable routing for disc brakes, thru axle 12x142mm, sizes 47-50-53-55-57-59cm

Fork

Full Carbon aero, Disc brakes, integrated head 1.1/4, flat mount caliper, thru axle 12x100mm

Headset

Fsa No. 54 – MR137 – ACB 1-1/4diam.46.9x diam.37×7

Drivetrain

Shifters

Shimano Durace Di2 hydraulic disc brake for road, ST-R9270, BR-R9270, for 160mm rotor

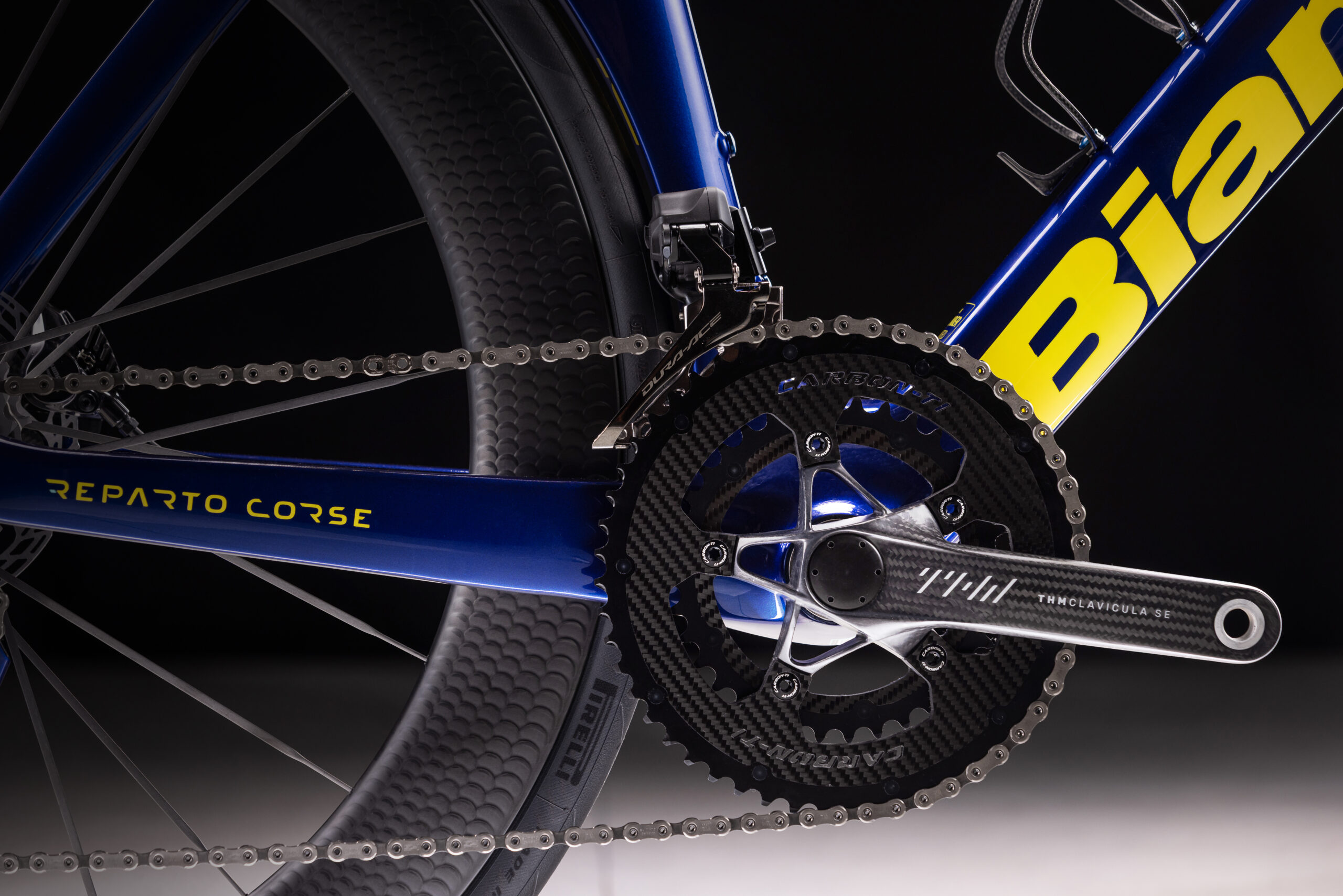

Crankset

THM-Carbones Clavicula SE Powermeter, BCD 110 mm, 5 bolts; Chainrings Carbon-Ti X-CarboRing 52x36T; Crank length: 165 mm (47/53 cm), 170 mm (55/59 cm)

Cassette

Shimano Durace 12sp, CS-R9200, 11-12-13-14-15-16-17-19-21-24-27-30T

Rear Derailleur

Shimano Durace Di2 12sp, RD-R9250 Ceramicspeed cage, OSPW Aero Alpha

Bottom Bracket

Clavicula Pressfit

Front Derailleur

Shimano Durace Di2 12sp,FD-R9250

Chain

Shimano Durace 12sp, CN-M9100

Brakes

Brakes

Shimano BR-R9270 Hydraulic disc brake, included in the shifter

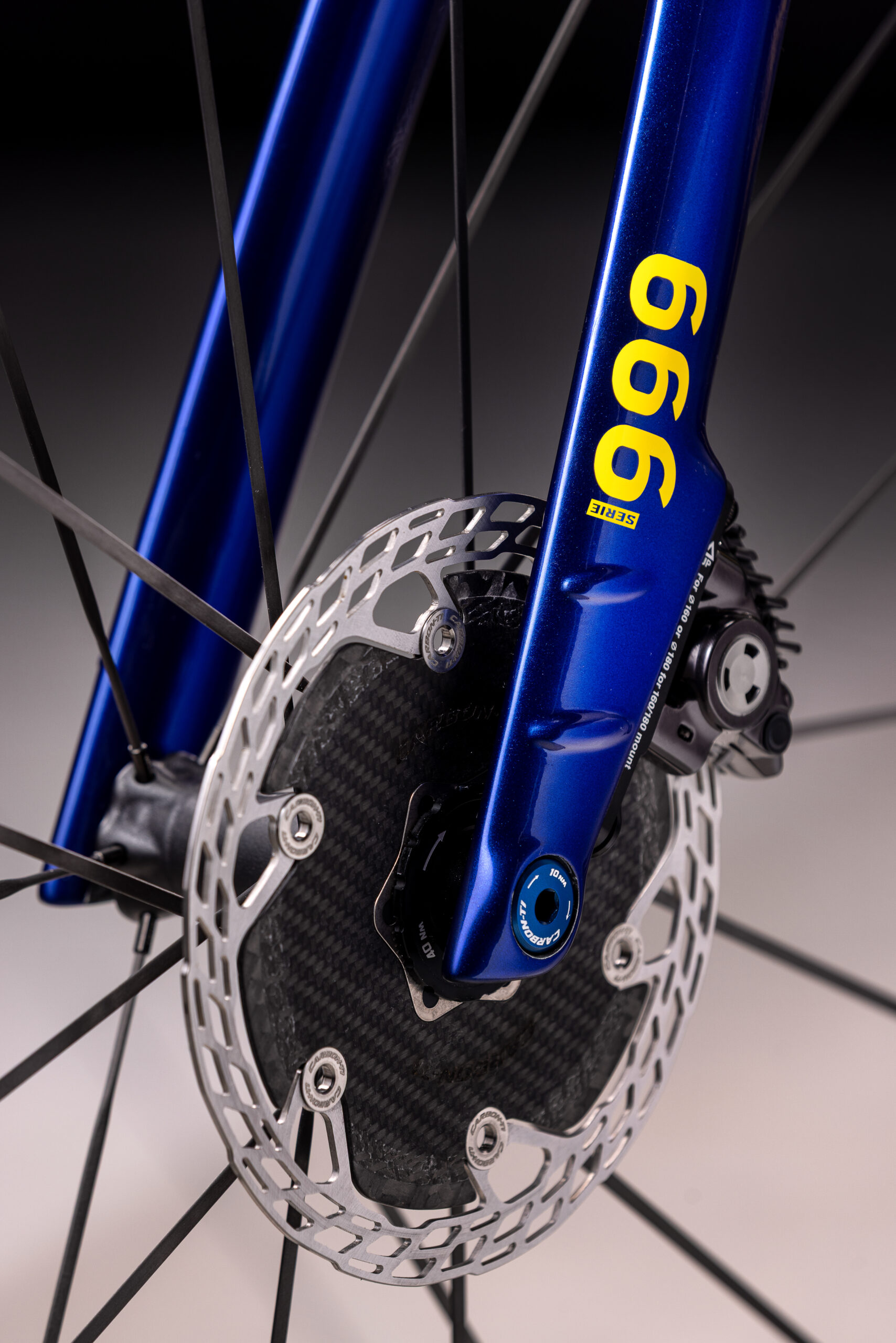

Rotor

Carbon-Ti, X-Rotor Aero Center Lock, 160 mm front and rear

Wheels

Wheels

Scope Artech 6.A, 65 mm profile, 700x25C, HG body, Aeroscales rim structure, 3D printed hubs, 36T diamond Ratchet SL system, Carbonlite Aerospoke, weight per set: 1319 g

Tire

Pirelli P ZERO™ Race RS TLR , 30-622, SmartEvo compound, Speedcore TLR technology, 120 tpi

Cockpit

Stem

Integrated handlebar Integrated Aero bar, material carbon, drop 125mm, reach 80mm, Di2 compatible Ext: 90×400-47/50cm ; 100×400-53cm; 110×420-55/57cm; 120×420-59cm

Handlebar

Included in the stem

Grips / Extensions

Seitex technology premium tape, 3.0mm thickness, custom color, expanding locking bar plugs

Saddle

Seatpost

Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50/55cm, 350mm-57/59cm

Saddle

Fizik Vento Argo 00 Adaptive, Full carbon shell, Adaptive padding technology, Carbon rails, length: 265 mm, width: 140 mm, weight: 153 g

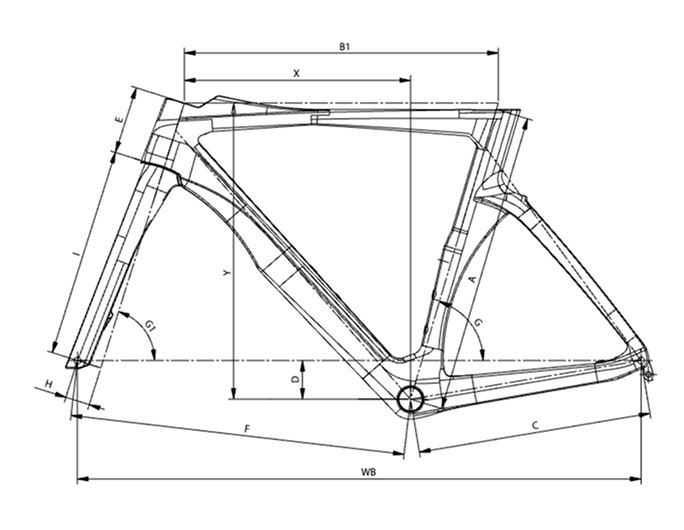

SIZE A B1 C D E F G G1 H I X Y WB
470 450 515 410 58 83 579 74.5° 70.5° 43 368 385 470 982
500 480 525 410 58 88 581 74.5° 71.5° 43 368 392 478 983
530 510 536 410 68 103 582 74° 72° 43 368 393 504 984
550 530 550 410 68 118 588 73.5° 72.5° 43 368 397 520 988
570 550 560 412 68 133 593 73.5° 73° 43 368 402 536 996
590 570 575 412 68 153 603 73° 73° 43 368 406 555 1005

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

color

01 – Celeste Spectrum – White alabaster, 02 – Blue Italia – Yellow Heritage
