Frameset
Frame
Zolder Pro carbon cyclocross disc brake flat mount, press fit 86.5×41 headset 1.5″ – 11/8″, thru axle 12×142 sizes 48-50-52-54-56-58-cm
Fork
Full carbon 1.5″ – 11/8″, disc brake flat mount, 1.5″ – 11/8″, thru axle 12×100
Headset
Fsa Orbit C-40-ACB ; NO.42/ACB, Sealed 1-1/8 ACB Top, 1.5″ ACB Btm ; Standard 15mm top cover alloy
Drivetrain
Shifters
Shimano GRX 610 12sp Hydraulic disc brake
Crankset
Shimano GRX 610 12sp FC-RX610-1, GRX, 12-speed, 2-pcs FC, 170-172.5-175mm, 40T Crank Length: 170mm-48/52, 172.5mm-54/58
Rear Derailleur
Shimano GRX 820, 12 speed
Bottom Bracket
Token Ninja Lite BB4124PS, for 24mm spindle, with premium bearings, threaded design
Chain
Shimano CN-M6100,12 speed
Cassette
Shimano 105 12sp 11-34T 11-12-13-14-15-17-19-21-24-27-30-34T
Brakes
Brakes
Shimano BR-RX410 flat mount hydraulic disc brake included in the shifter
Rotor
Shimano SM-RT70 rotor for disc brake center lock , with Ice Technology, S 160mm (front&Rear)
Cockpit
Stem
Velomann ST199A.2 3D Forged alloy 2014, raise – 8°, height 38mm, Oversize, 1 1/8″, sandblast matt finish Ext: 90mm-48-50cm,100mm-52~54cm,110mm-56cm,120mm-58cm
Handlebar
Velomann RA35A Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm- 48~50cm; 420mm-52~58cm ,440mm-58cm
Grips
Bianchi Hexagon tape, 2.5mm thickness, full black
Wheels
Wheels
Velomann V30R, alloy, 23mm channel, 30mm profile. 2 to 1 spoke pattern, j-bend spokes, black, HG11 boby, weight : 1790g
Tire
Vittoria Terreno Mix 33-622/700x33c G2.0, nylon 120TPI, TLR reinforced, color black/black antracite
Saddle
Seatpost
Velomann SP67T.C carbon shaft UD finish, forged alloy head, 15mm offset L350mm, 27,2mm
Saddle
Selle Italia Model X SuperFlow
Seatpost Clamp
MX-112C Aluminium clamp, light weight, 31,8mm anti-crimp, black

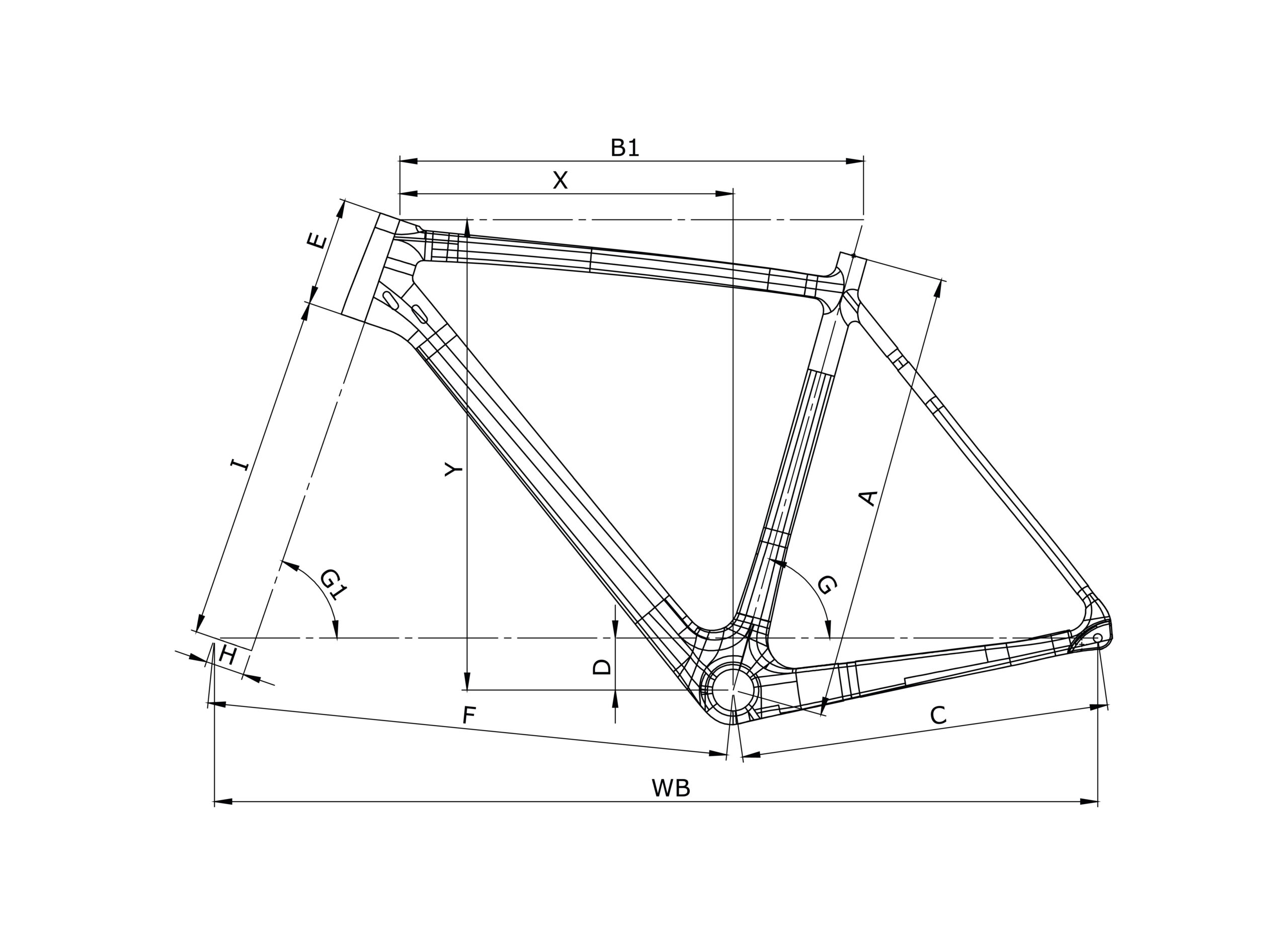

| SIZE | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
| 480 | 510 | 425 | 53 | 100 | 590 | 75.5° | 70.5° | 45 | 400 | 378 | 510 | 1009 |
| 500 | 525 | 425 | 58 | 115 | 600 | 75° | 70.5° | 45 | 400 | 383 | 529 | 1018 |
| 520 | 535 | 425 | 60 | 125 | 601 | 74.5° | 71° | 45 | 400 | 385 | 542 | 1019 |
| 540 | 545 | 425 | 60 | 135 | 602 | 74° | 71.5° | 45 | 400 | 386 | 554 | 1020 |
| 560 | 560 | 425 | 62 | 145 | 606 | 73.5° | 72° | 45 | 400 | 391 | 569 | 1024 |
| 580 | 575 | 425 | 62 | 160 | 611 | 73° | 72.5° | 45 | 400 | 396 | 583 | 1028 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | YD – CK16 / Purple – Abyssal Teal, YE – Tangerine Orange / White – Desert Green |
|---|
