Frameset
Frame
Bianchi AQUILA, Disc brake: Flat Mount 140/160,
Bottom bracket: PressFit 86.5×41, Thru axle:
12×142 mm, Max chainring: 58T (2x) – 62T (1x),
Max tire clearance: ETRTO 622-28 mm sizes SMMD-
LG
Fork
Bianchi Aquila, Disc brake: Flat Mount 140/160,
Thru axle: 12×100 mm, Max tire clearance: ETRTO
622-28 mm, Steering tube diameter: 1 1/8″
Headset
FSA Custom
Drivetrain
Shifters
Sram S-900 Aero HRD with Remore Switch
Crankset
Sram Rival E1, 48x35T Crank length: 165 mm
(SM) 170 mm (MD); 172.5 mm (LG)
Cassette
Sram Rival XG 1250 D1, 10-36, 10-11-12-13-15-
17-19-21-24-28-32-36T
Rear Derailleur
Sram Rival AXS E1, 12sp
Bottom Bracket
Sram Press fit Road 86.5×41
Front Derailleur
Sram Rival AXS E1
Chain
Sram Rival E1
Brakes
Brakes
Sram Rival E1, Hydraulic disc brake. Brake lever included in the shifter.
Rotor
Sram Centerline, Center Lock, 160 mm (front&Rear)
Cockpit
Stem
Bianchi. Included in the handlebar
Handlebar
Bianchi Reparto Corse by Vision, Diameter of
steering tube interface: 1 1/8″, Misura: 110/400
mm (SM-MD-LG) – Extensions: Vision JS bend
Carbon, comaptible with Vision TFE extensions
(not incluse), bridge for TFE not included
Grips
Bianchi Hexagon tape, 2.5 mm thickness, black
Wheels
Wheels
Velomann V30R, alloy, internal channel width 23
mm, profile height 30 mm, 2 to 1 spoke pattern, jbend
spokes, black, XDR body, weight: 1790 g
Tire
Pirelli P Zero Race SL TLR, 28-622, 120 TPI
Saddle
Seatpost
Bianchi Custom Airfoil Shape, Offset: Ritchey
Rail length: 280 mm (SM); 300 mm (MD); 350 mm
(LG)
Saddle
Selle Italia Watt, 3D, Manganese rail, Triathlon
specific
Seatpost Clamp
Bianchi Custom

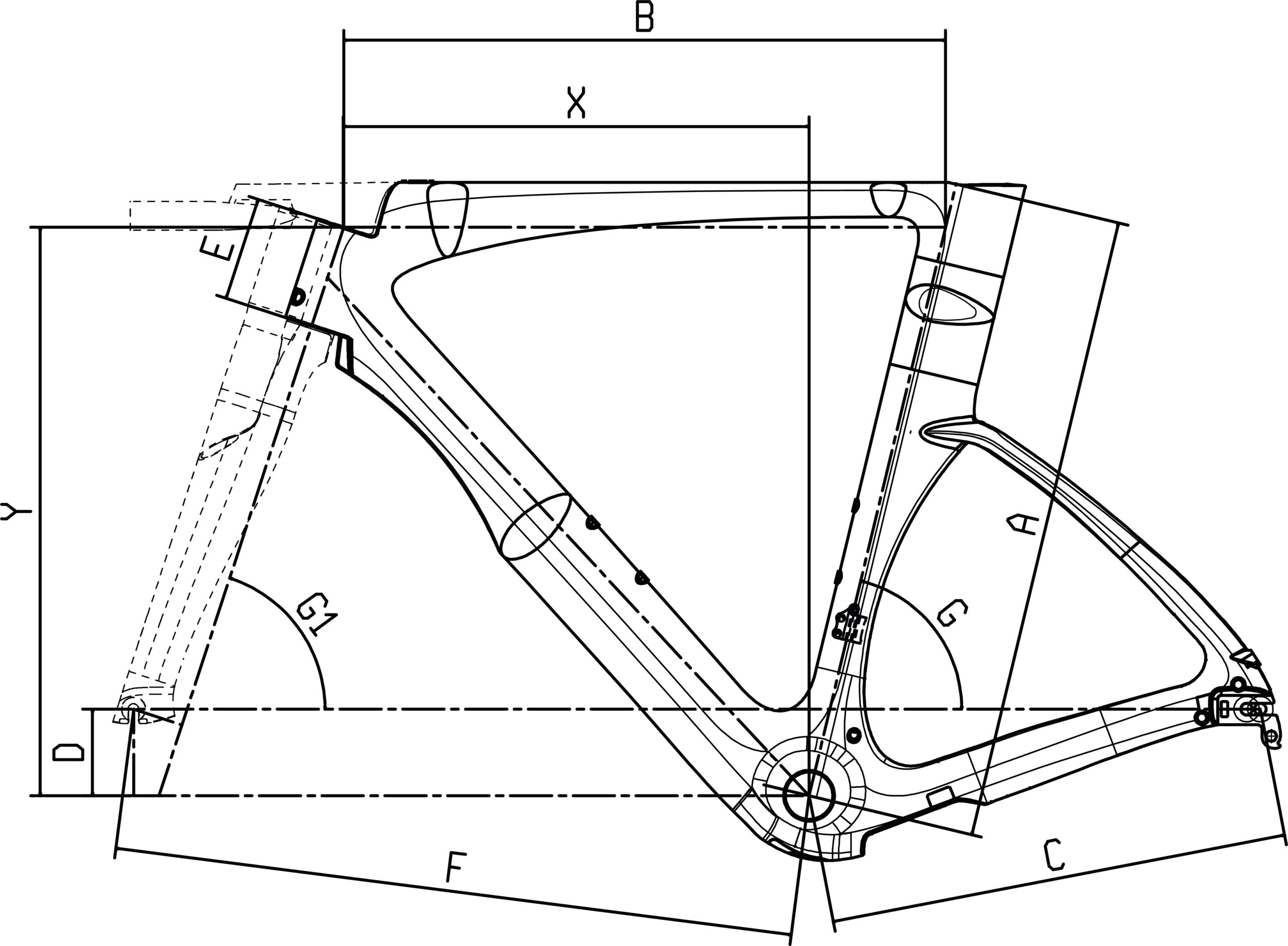

| IZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 510 | 510 | 410 | 75 | 75 | 588 | 77,5° | 72,0° | 45 | 370,5 | 402 | 486 | 986 | 627 | 489 | 473 | 624 | 75 |
| M | 530 | 535 | 410 | 75 | 90 | 610 | 77,5° | 72,0° | 45 | 370,5 | 420 | 500 | 1008,5 | 645 | 500 | 491 | 639 | 75 |
| L | 560 | 556 | 410 | 75 | 115 | 638 | 77,5° | 72,0° | 45 | 370,5 | 440 | 524 | 1036 | 665 | 524 | 511 | 662 | 75 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | AD – White / Petrol Green – Mint, ZY – Metalic Celeste / Black UD Carbon |
|---|
