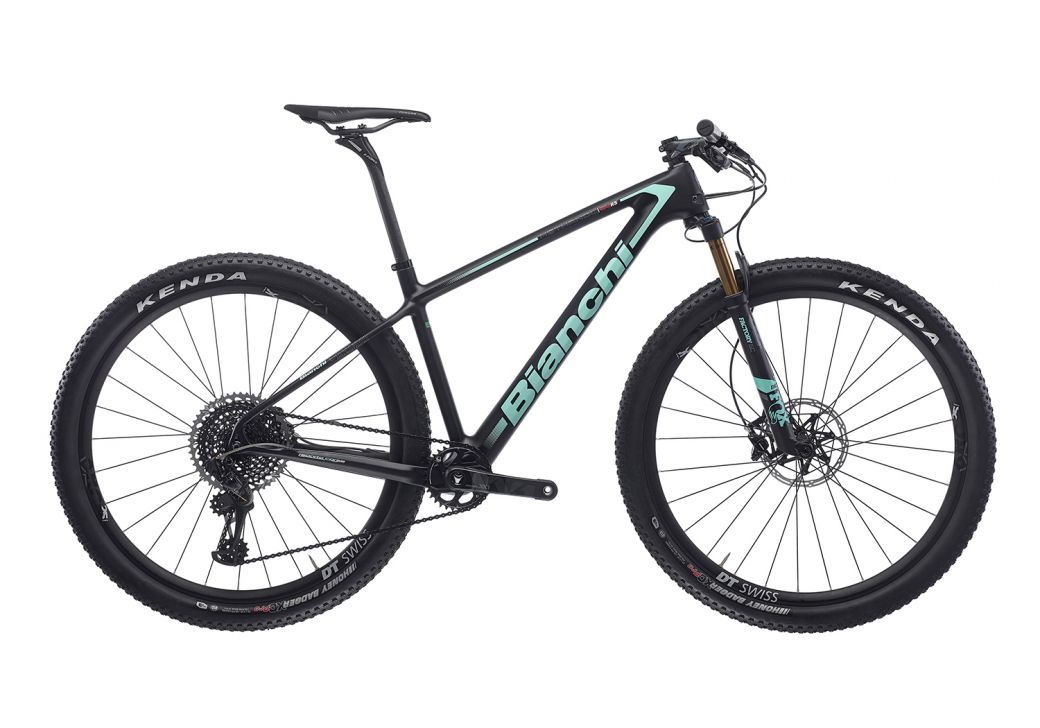

Bianchi Methanol CV RS 9.2

Tech specs

• Frameset

  1. Rahmen

     Methanol CV RS 29" carbon HM monocoque w/Countervail, 1.5" tapered HT, Pressfit BB92 (41x92mm), 1x drivetrain only, 27,2mm seatpost, PM 160mm carbon dropout 12x148mm BOOST, internal cable routing Di2 compatible, sizes 15,17,19,21"

  2. Gabel

     Fox 32 SC 29" Factory Kashima remote, 100mm travel

  3. Headset

     Fsa Orbit C-40

• Drivetrain

  1. Schalthebel

     Shimano XTR SL-M9100IR 1x12sp

  2. Schaltwerk

     Shimano XTR RD-M9100 SGS 12sp

  3. Kurbelgarnitur

     Shimano XTR FC-M9100-1 34T, Hollowtech II, 162mm Q-Factor, 52mm chain line, crank lenght: 170mm-15", 175mm-17/21"

  4. Bottom Bracket

     Shimano SM-BB94-41A

  5. Kette

     Shimano CN-M9100, 12sp

  6. Kassette

     Shimano CS-M9100-12, 10-12-14-16-18-21-24-28-33-39-45-51T

• Brakes

  1. Bremsen

     Shimano XTR M9100

  2. Bremsscheibe

     Shimano RT86 6-Bolt type w/Ice Tech, 180mm front and 160mm rear

• Wheels

  1. Laufradsatz

     DT Swiss XRC 1200 Spline 29" Carbon 25mm

  2. Reifen

     Kenda Honey Badger XC Pro 29x2.20

• Cockpit

  1. Vorbau

     Fsa SL-K 3D Forged/CNC AL2014 w/UD Carbon faceplate, +/-12º, 1.1/8", diam. 31,8mm, ext: 70mm-15", 80mm-17'', 90mm-19/21"

  2. Lenker

     Fsa SL-K flat AL6066 w/carbon wrap, width 700mm, diam. 31.8mm, backsweep 9°, upsweep 4°

  3. Griffe

     T-One T-GP43X

• Saddle

  1. Sattelstütze

     Fsa SL-K, UD Carbon shaft, Forged alloy ITC, diam. 27,2mm, 0-15 mm seatback, length: 350mm-15", 400mm-17/21"

  2. Sattel

     Fi'zi:k Taiga

• Accessories

  1. Pedale

     included

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
