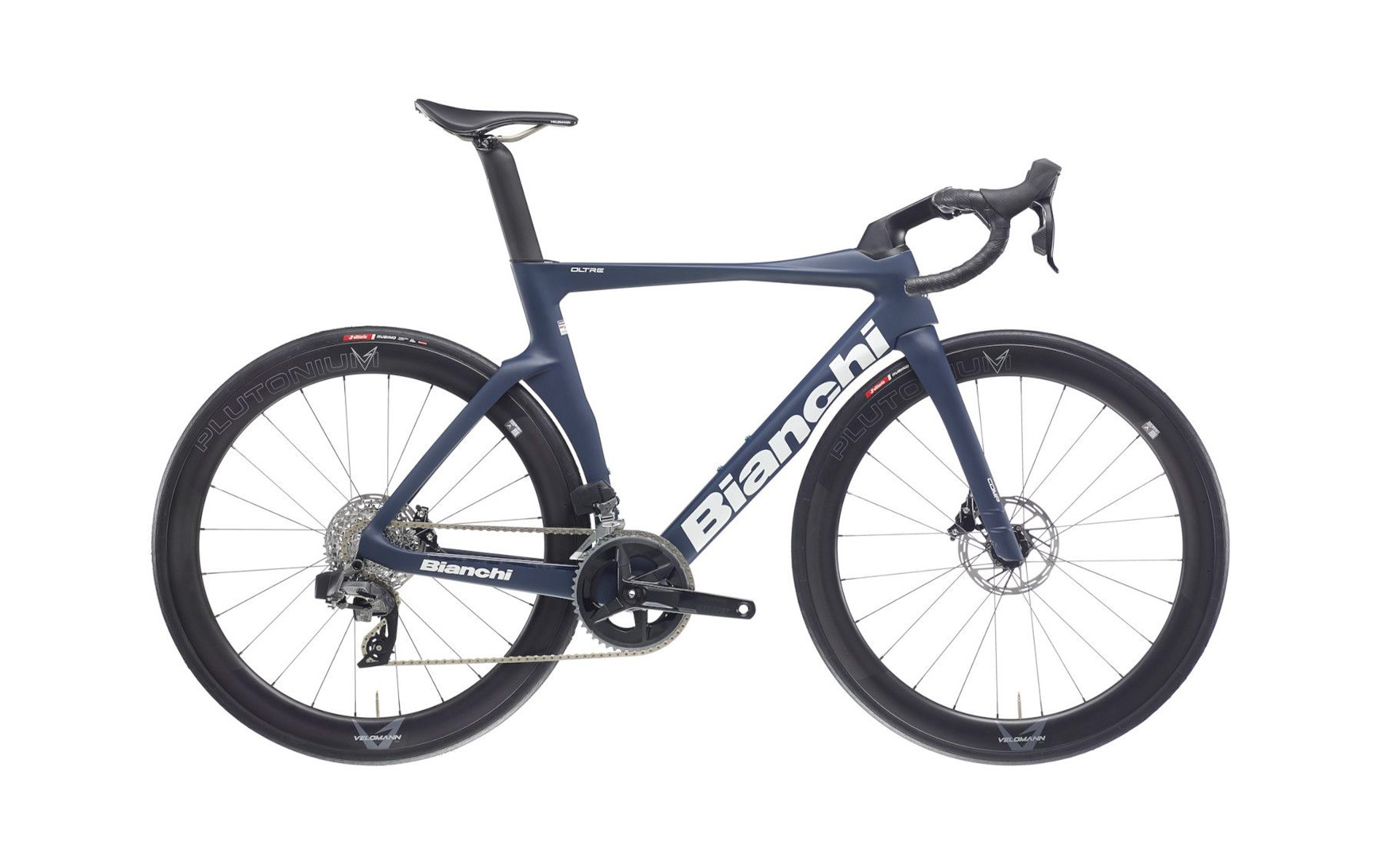

FORCE ETAP AXS E1 PWMYVB27
Oltre PRO
Recommended Retail Price
$10 003.50
Hai bisogno di aiuto?
Manutenzione
Scopri come prenderti cura del prodotto
Manuali
Tutto quello che devi sapere sulla tua bici
Garanzia legale
Scopri i termini e le condizioni
Garanzia convenzionale a vita
Scopri tutti i dettagli sui termini e le condizioni della garanzia convenzionale a vita
Frameset
Frame
Bianchi Oltre PRO full carbon, with Bianchi CV system, Aero shape, only electronic groupsets, fully internal cable routing, headset 1″1/4 – 1″1/4, direct mount brakes, BB-PressFit 86.5×41 sizes 47-50-53-55-57-59
Fork
Bianchi Oltre PRO full Carbon High Modulus, with Bianchi CV System, Aero shape, integrated head, disc, 1″1/4 head, 12×100 mm thru axle
Headset
FSA No. 54 – upper bearing MR137; lower bearing MR082R
Drivetrain
Shifters
Sram Force AXS E1
Crankset
Sram Force E1, Quarq Power Meter, 48x35T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm)
Cassette
Sram Force XG 1270 E1, 10-33, 10-11-12-13-14-15-17-19-21-24-28-33T
Rear Derailleur
Sram Force AXS E1, 12sp
Bottom Bracket
Sram Press-Fit Road 86.5×41
Front Derailleur
Sram Force AXS E1
Chain
Sram Force E1
Brakes
Brakes
Sram Force E1, Hydraulic disc brake
Rotor
Sram Paceline, Center Lock, 160 mm
Cockpit
Stem
Bianchi Reparto Corse integrated handlebar, Aero bar, Carbon, for internal cable routing, drop 125 mm, reach 80 mm Size: 90/400 mm (47-50 cm) ; 100/420 mm (53 cm) ; 110/420 mm (55-57 cm); 120/440 mm (59 cm)
Handlebar
Included in the stem
Grips / Extensions
Bianchi Arrow premium tape, 2.5 mm thickness, full black
Wheels
Wheels
Velomann Plutonium, Carbon rim, 50 mm profile, 700x21c, 24h, XDR body
Tire
Pirelli P Zero Race SL TLR, 28-622, 120 TPI
Saddle
Seatpost
Bianchi Oltre, full carbon, aero shape, 20 mm offset length: 280 mm (47 cm); 300 mm (50-55 cm); 350 mm (57-59 cm)
Saddle
Velomann Mitora 139 Lite, open flow, Carbon rails 7×9.1 mm, Carbon-reinforced nylon shell, length 250 mm, width 139 mm
| SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
| 470 | 450 | 515 | 410 | 58 | 83 | 579 | 74.5° | 70.5° | 43 | 368 | 385 | 470 | 982 |
| 500 | 480 | 525 | 410 | 58 | 88 | 581 | 74.5° | 71.5° | 43 | 368 | 392 | 478 | 983 |
| 530 | 510 | 536 | 410 | 68 | 103 | 582 | 74° | 72° | 43 | 368 | 393 | 504 | 984 |
| 550 | 530 | 550 | 410 | 68 | 118 | 588 | 73.5° | 72.5° | 43 | 368 | 397 | 520 | 988 |
| 570 | 550 | 560 | 412 | 68 | 133 | 593 | 73.5° | 73° | 43 | 368 | 402 | 536 | 996 |
| 590 | 570 | 575 | 412 | 68 | 153 | 603 | 73° | 73° | 43 | 368 | 406 | 555 | 1005 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | ZF – Celeste Metallic, ZH – Carbon Glossy |
|---|
