Components and graphic details may differ from the actual model.

29'' - Bosch CX 800 Wh - Deore10YVB7T

T-Tronik X 9.1

Recommended Retail Price

$4 434.30

Trova il rivenditore più vicino

Hai bisogno di aiuto?

Manutenzione

Scopri come prenderti cura del prodotto

Manuali

Tutto quello che devi sapere sulla tua bici

Garanzia legale

Scopri i termini
e le condizioni

Garanzia convenzionale a vita

Scopri tutti i dettagli sui termini e le condizioni della garanzia convenzionale a vita

Motor Unit

Motor

Bosch Performance Line CX BDU3840 – Purion 200

Battery

Bosch Powertube 800 Wh

Frameset

Frame

Bianchi T-Tronik X, aluminium, 12×148 mm rear thru axle, Post mount 180 disc brake type, Front travel 120 mm, Internal cable routing in steerer, 800 Wh battery compatible sizes SM-MD-LG-XL

Fork

Suntour XCR34X, Air, 120 mm travel, Steerer tube 1,5″ tapered, 34 mm stanchions, 15×110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm

Headset

Acros Acros Integrated Cable Routing

Drivetrain

Shifter

Shimano Deore SL-M4100, Rapidfire Plus

Crankset

FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm

Rear Derailleur

Shimano Deore, RD-M4120, 10sp, Shadow design

Cassette

Sunrace CSMS2, 11-42T

Chain

KMC e10S EPT, Anti-Rust

Brakes

Brakes

Sram Guide T, 4 piston

Rotor

FRONT: Sram Centerline, 200 mm / REAR: Sram Centerline, 180 mm

Brake Levers

Sram Guide T, included in the brake

Cockpit

Stem

Velomann Viper0, alloy, Diameter 28.6 mm, Barbore 31,8 mm Size: 60 mm

Handlebar

Velomann Aluminium, Rise 15 mm, Barbore 31.8 mm, Width 740 mm Size: 740 mm

Grip

Herrmans Luna lock 130 mm

Wheels

Wheels

Velomann 622×30, 32 hole; Front hub: Shimano TC500 Thru axle; Rear hub: Shimano TC500 Thru axle

Tire

Obor Mike Bear, 29″x2,35″, 60 TPI

Saddle

Seatpost

Velomann AL2014, Diameter: 31,6 mm, Seatback: 0 mm for size SM; Dropper, travel 125 mm for size MD-LG; Dropper, travel 150 mm for size XL

Saddle

Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

Seatpost Clamp

Ursus Alloy, Quick Release, Diameter 34,9 mm

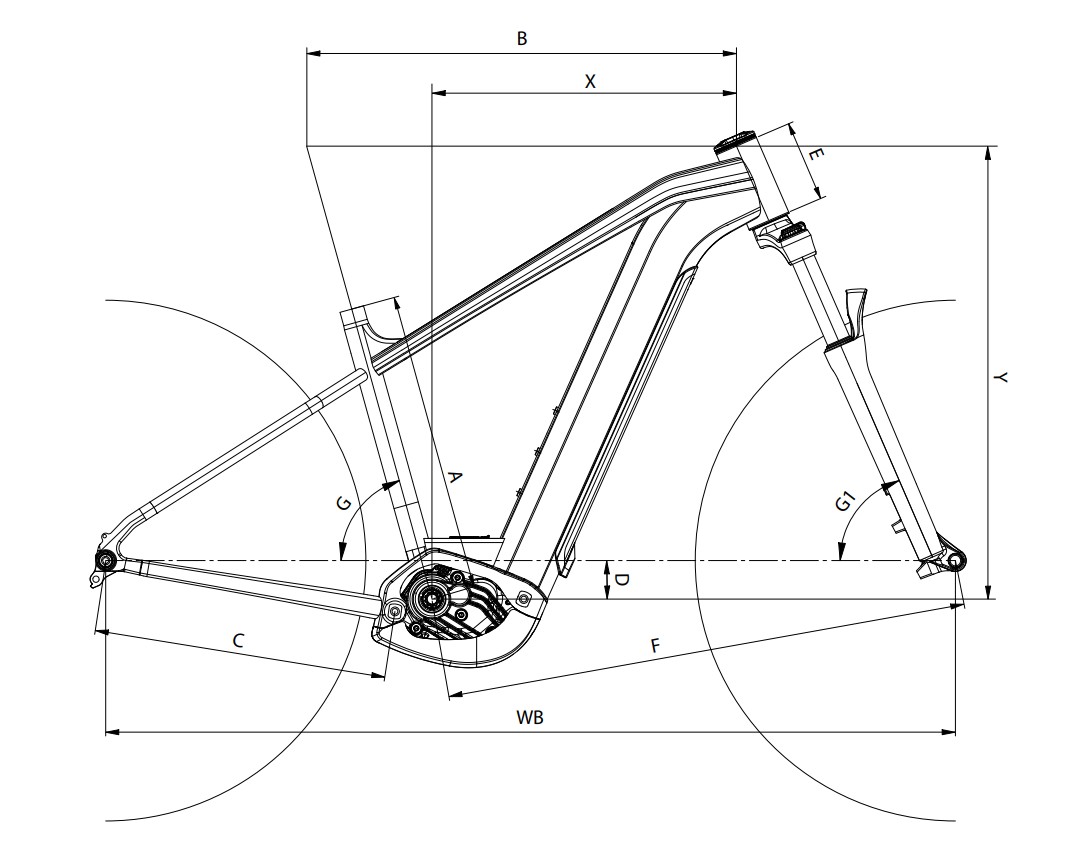

SIZE A B C D E F G G1 X Y WB
S 400 591 470 55 100 724 74.5° 66.5° 415 634 1189
M 430 615 470 55 116 750 74.5° 66.5° 435 648 1215
L 480 638 470 55 131 776 74.5° 66.5° 455 661 1241
XL 520 662 470 55 146 802 74.5° 66.5° 475 675 1267

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

color

YN – Dark Celeste Metallic / Celeste Metallic, YP – White / Iridescent Blue-Violet
