PURE ROAD ENJOYMENT
An e-road bike that brings different riders together to share the pure joy of road cycling.
There are so many reasons why you might want an e-road bike: to conquer new climbs you’ve never considered, to explore routes far beyond your front door reducing your muscle fatigue,
or to keep up with faster riders who simply have more time to train.
The e-Oltre was born to keep your love for road cycling ignited, regardless of the reason.
We wanted to replicate the pure joy of road riding as closely as we could, just with assistance to level the playing field. The result is a fun and fast performance machine that barely feels like you’re riding an electric bicycle at all.
LIGHTWEIGHT DESIGN
Central to the thinking behind the e-Oltre are the perfect moments we experience on an authentic road ride. We wanted to give every rider access to those pure instants of enjoyment, be it a joke shared or an awe inspiring vista admired. The e-Oltre looks almost indistinguishable from a traditional road bike, and it rides like one too.

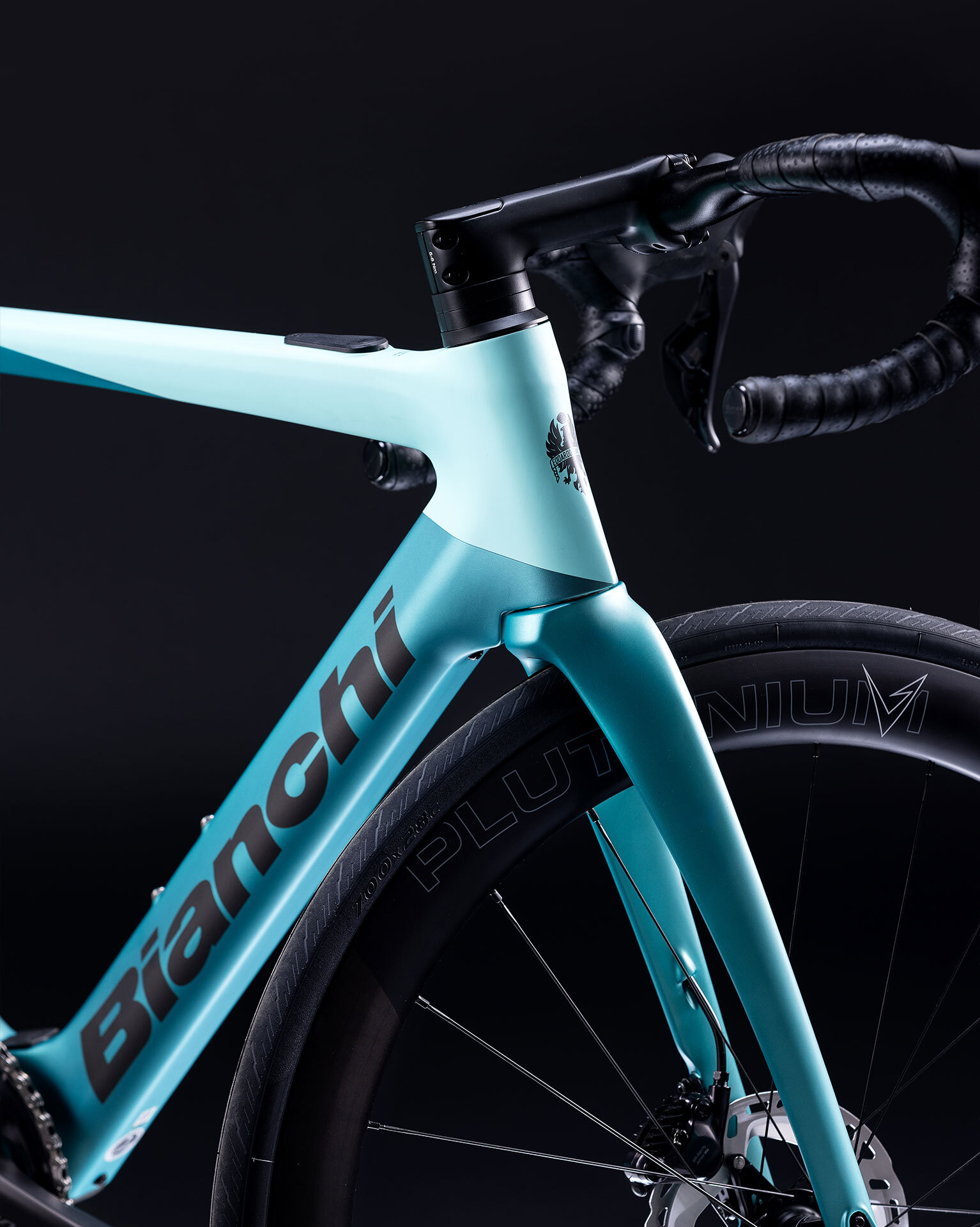

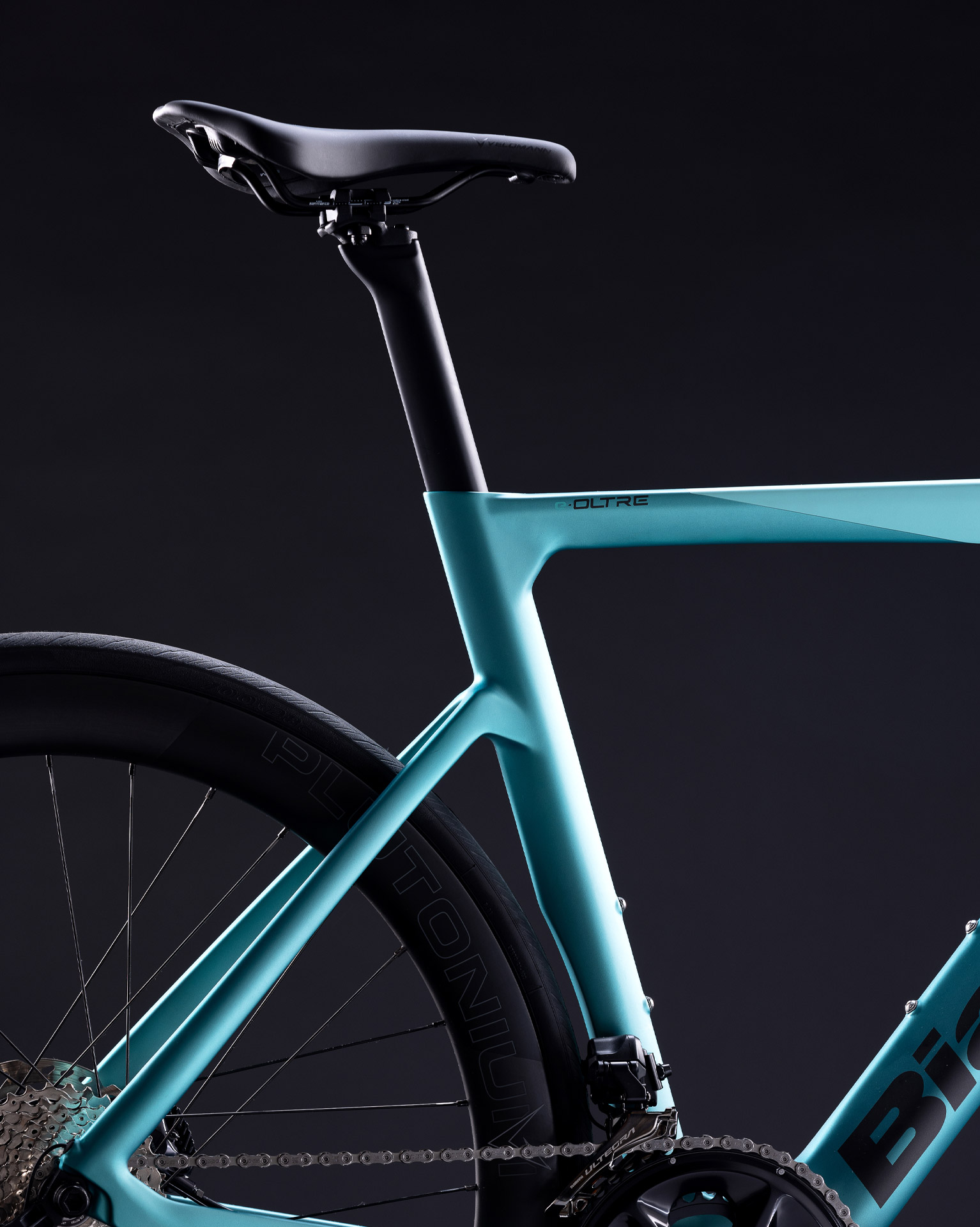

The e-Oltre is lightweight, at just 11Kg fully built (Shimano Dura-Ace Di2). It benefits from a full-carbon frame and fork, as well as 50mm carbon high-profile wheels (by Velomann).
POWER OF INNOVATION
To achieve our ambitious vision for the e-Oltre, we partnered closely with Mahle, leading manufacturer of e bike motor and battery systems.

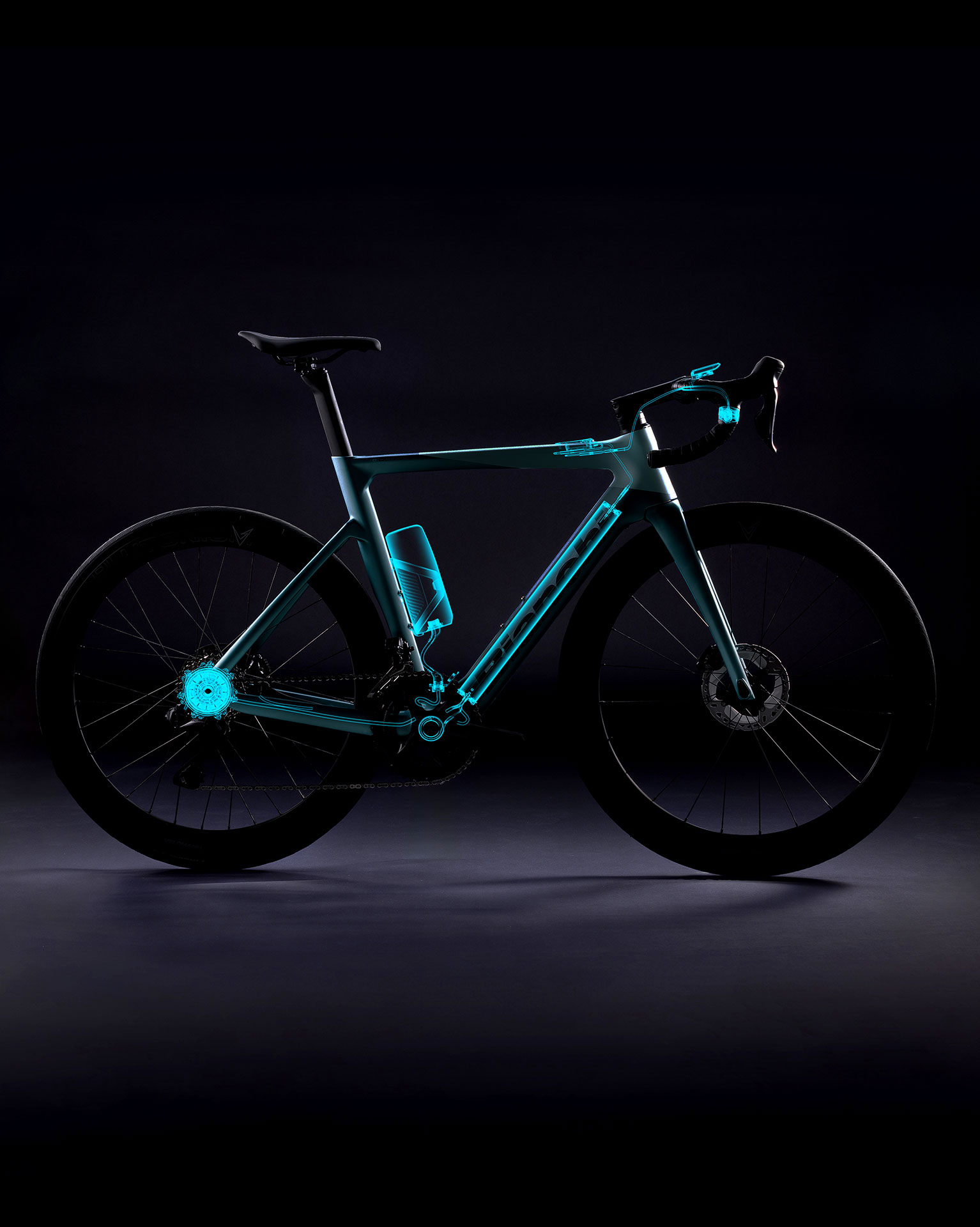

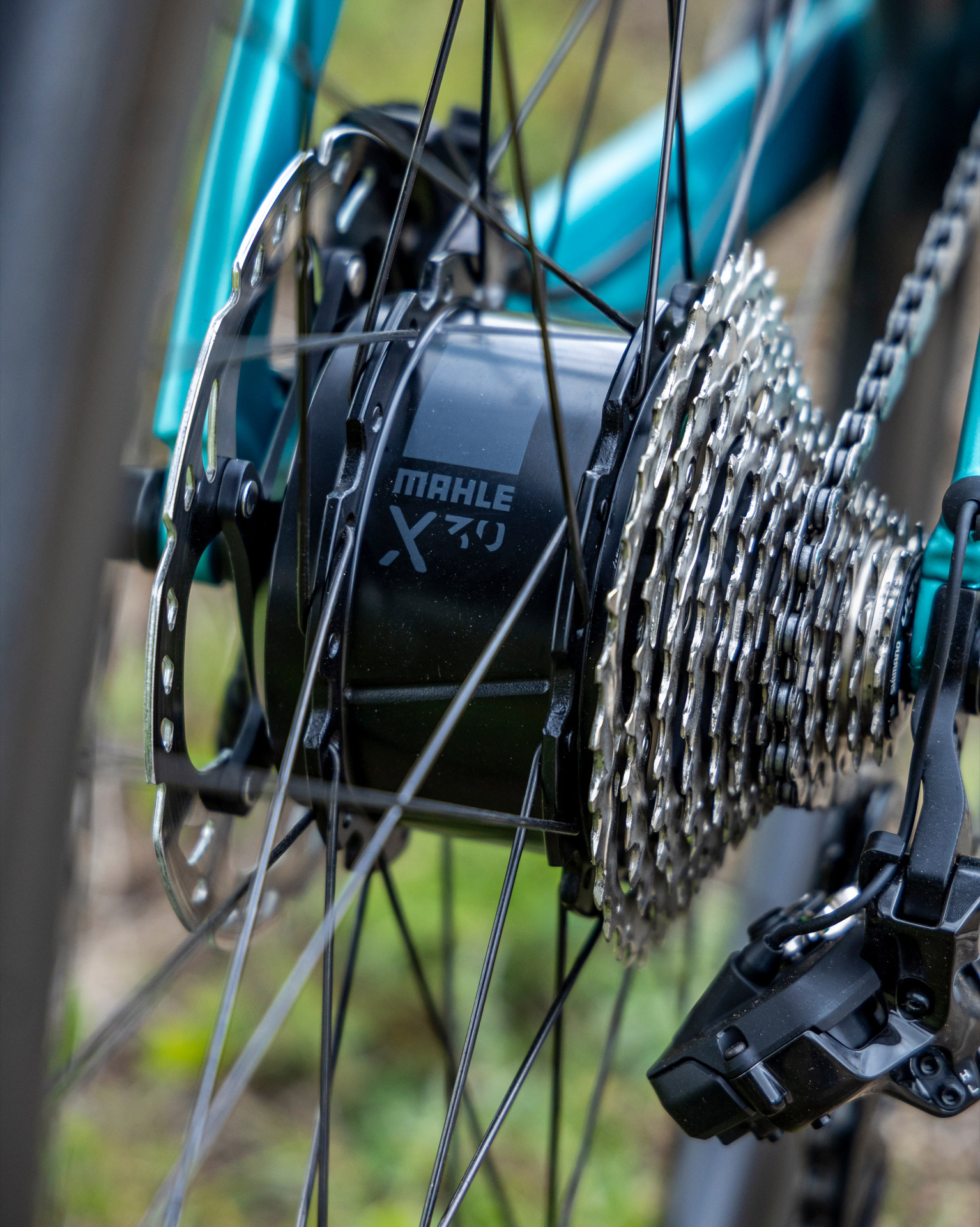

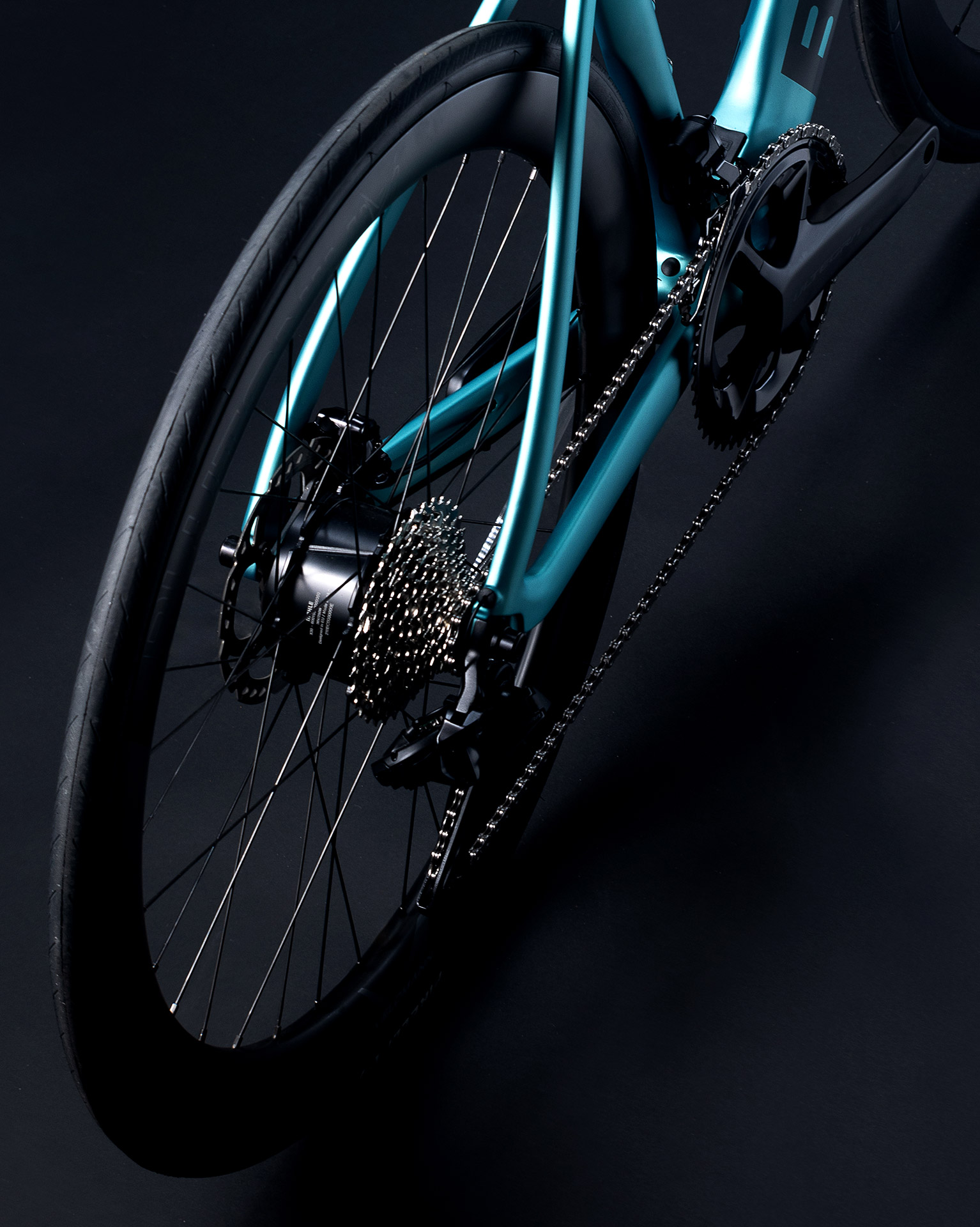

The Mahle X30 motor is positioned in the rear hub, keeping the appearance simple and pared back - everything you love about conventional road bike aesthetics. Not only that, it also allows for a greater riding experience that more closely mirrors that of a traditional road bike.
The torque sensor gives the e-Oltre an impressive level of reactivity, matching your effort in an instant.
POWERED BY
MAHLE X30
Torque: equivalent torque to a mid drive of 45 Nm;
Speed limit: 25km/h EU, 20mph US;
Torque sensor in the BB, natural ride feeling and good assistance during climbs;
Battery: 250Wh (90km range), possibility to add a range extender (+55 km);

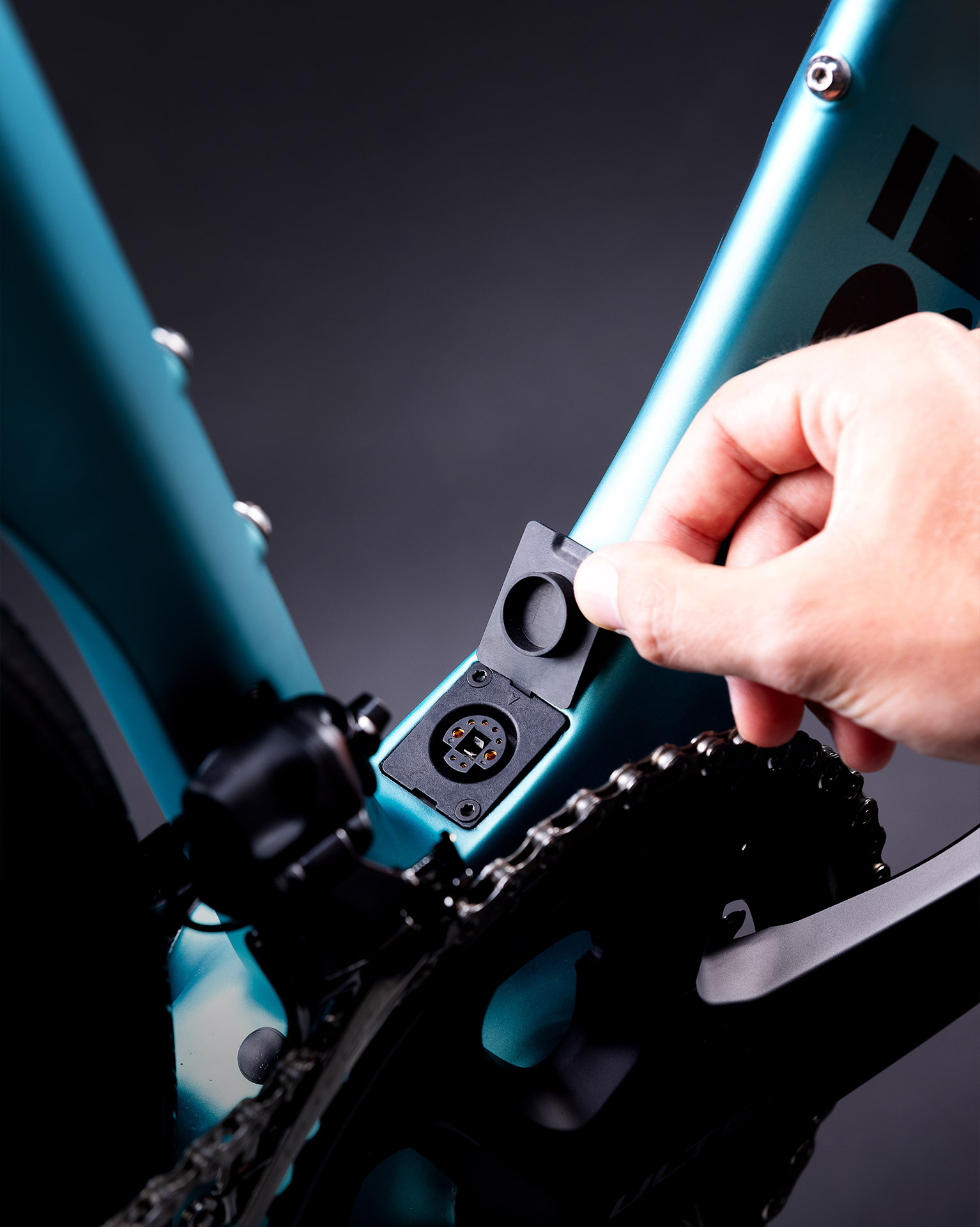

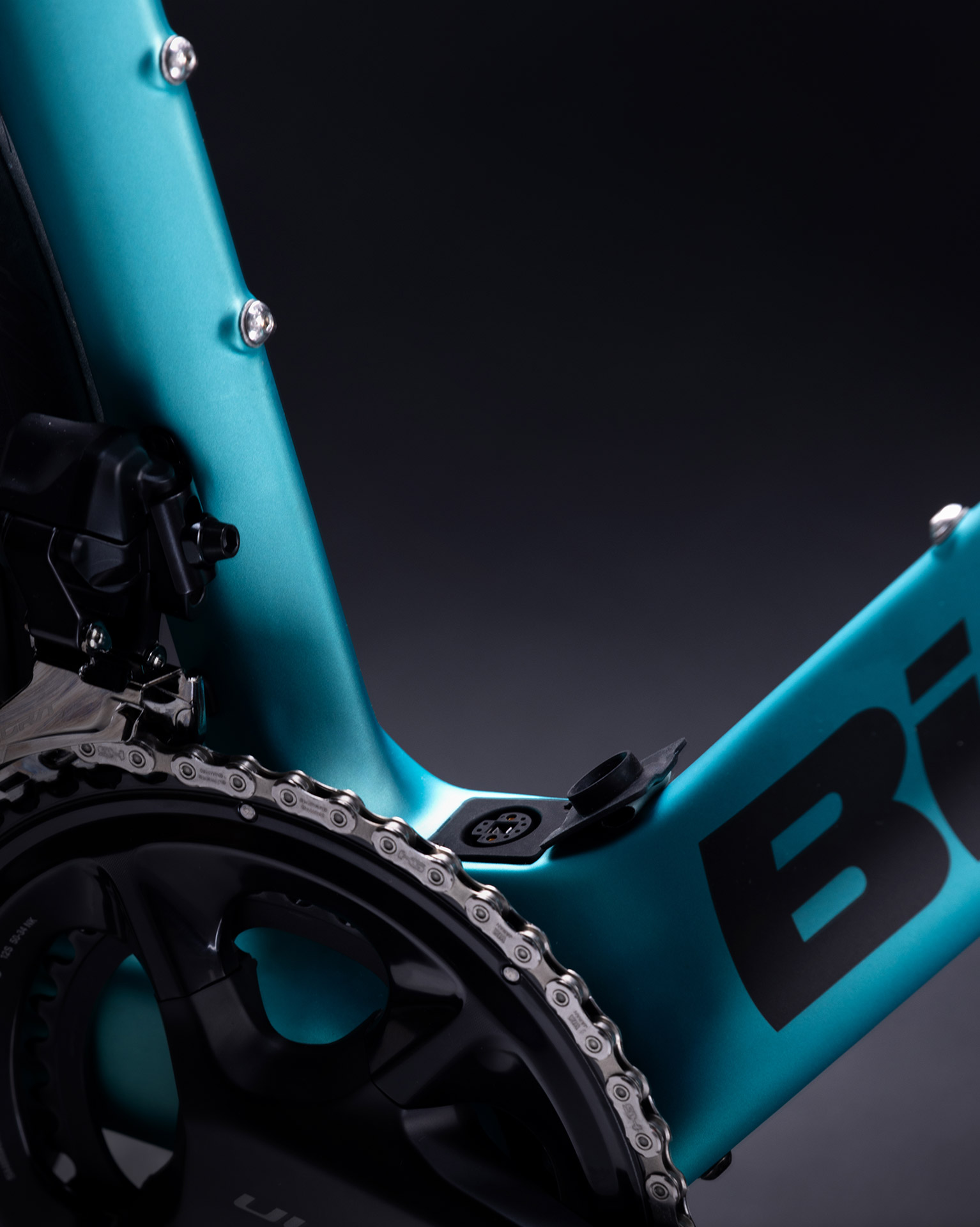

Charging at 4A: 3.5 hours / 75% in less than 2 hours;
Compatible with ANT+ and Bluetooth;
System weight: 3.5Kg.
QUICK-CHARGING BATTERY

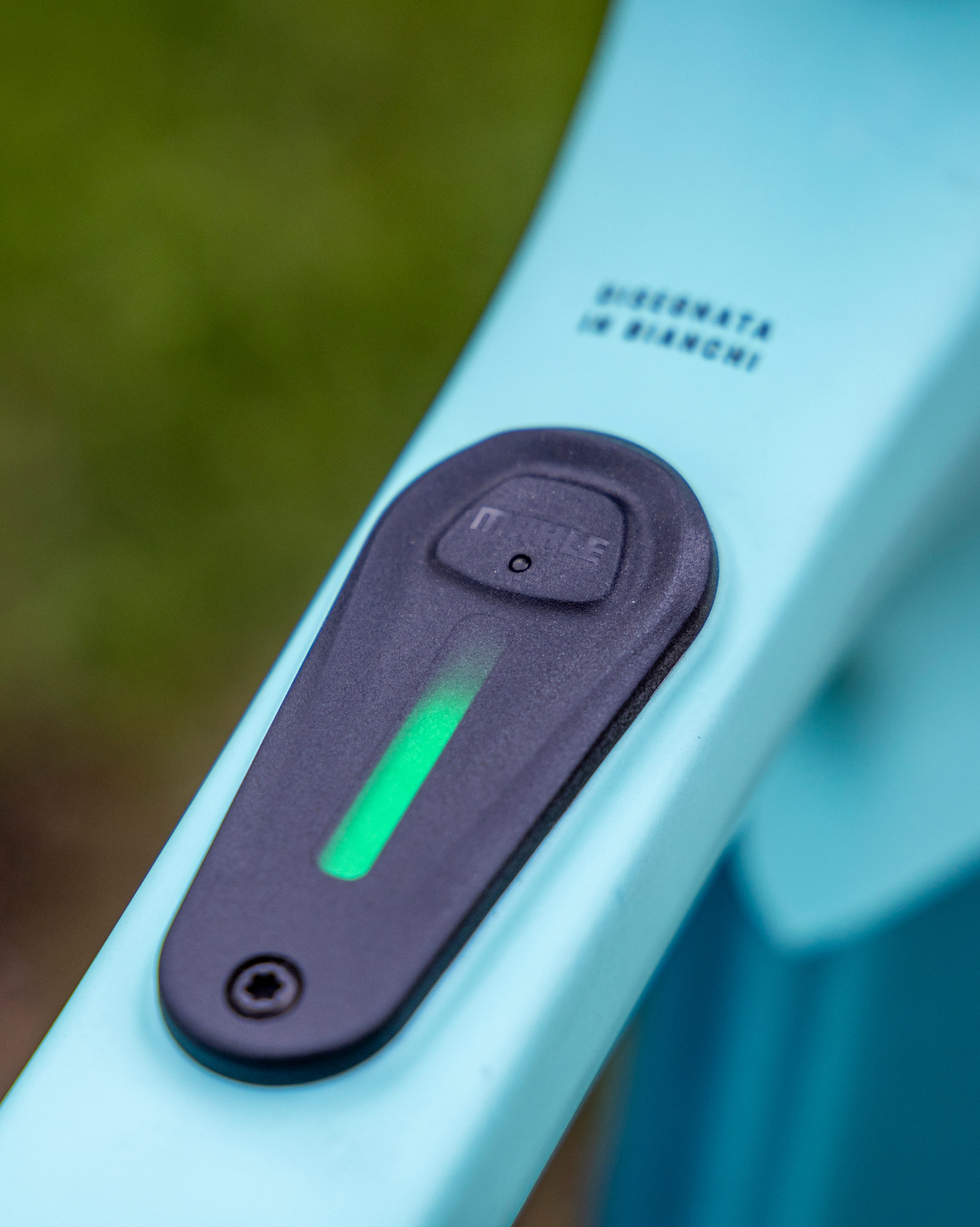

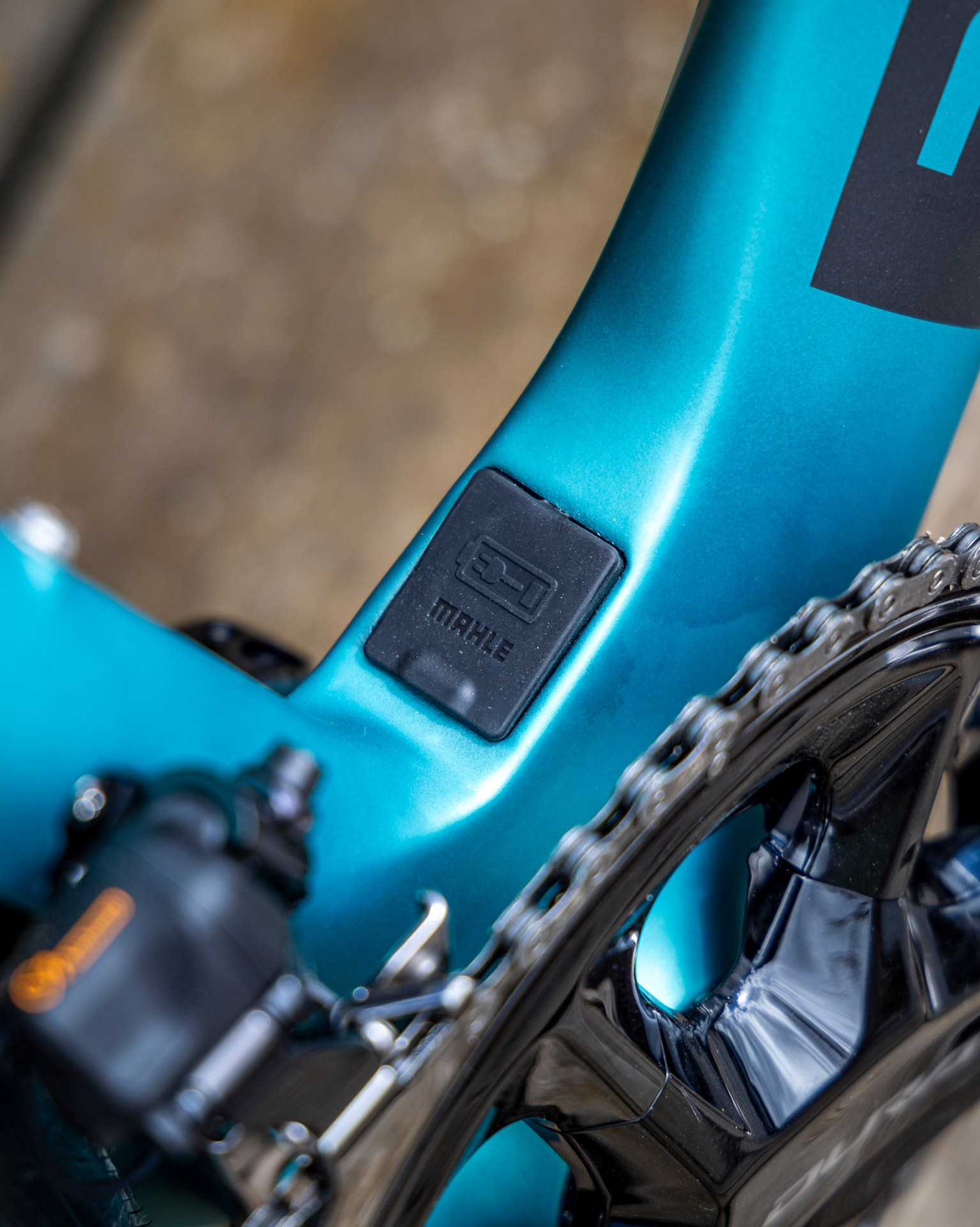

The Mahle iX2 battery has a capacity of 250 Wh, with an aftermarket range extender option that attaches to the bike’s second water bottle mounting point. Because of its quick-charging properties, the battery can be charged to 75% in less than two hours.
three levels of assistance

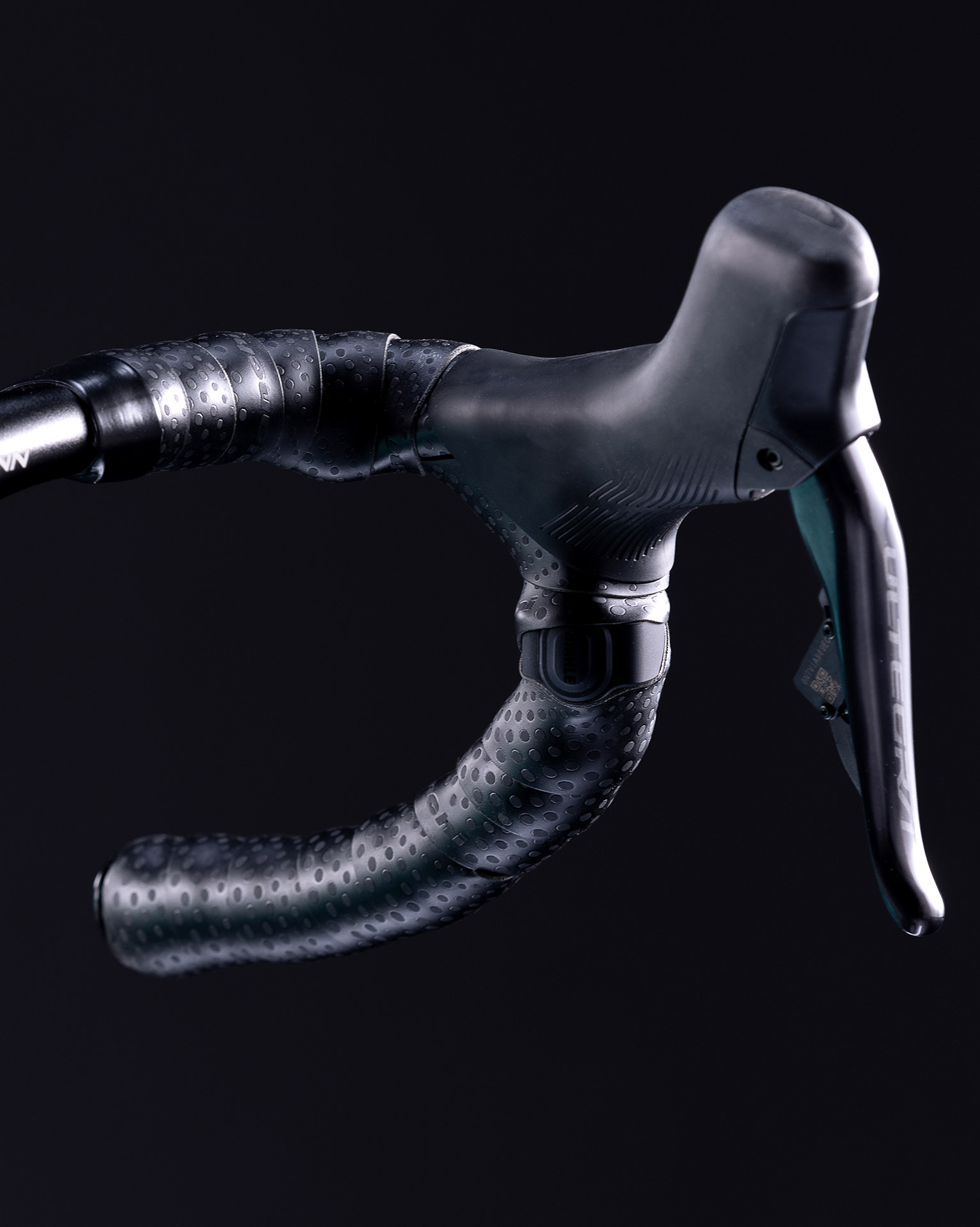

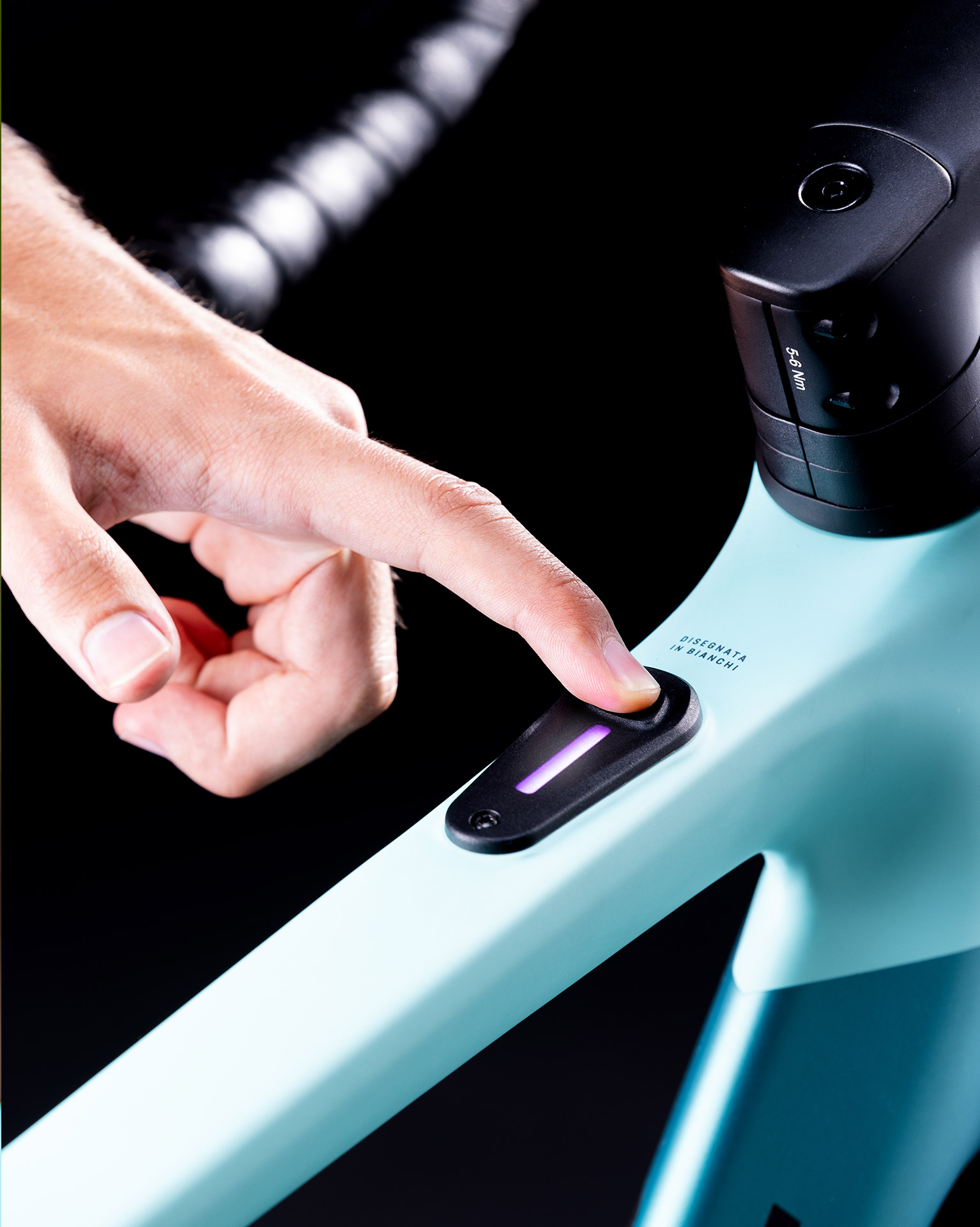

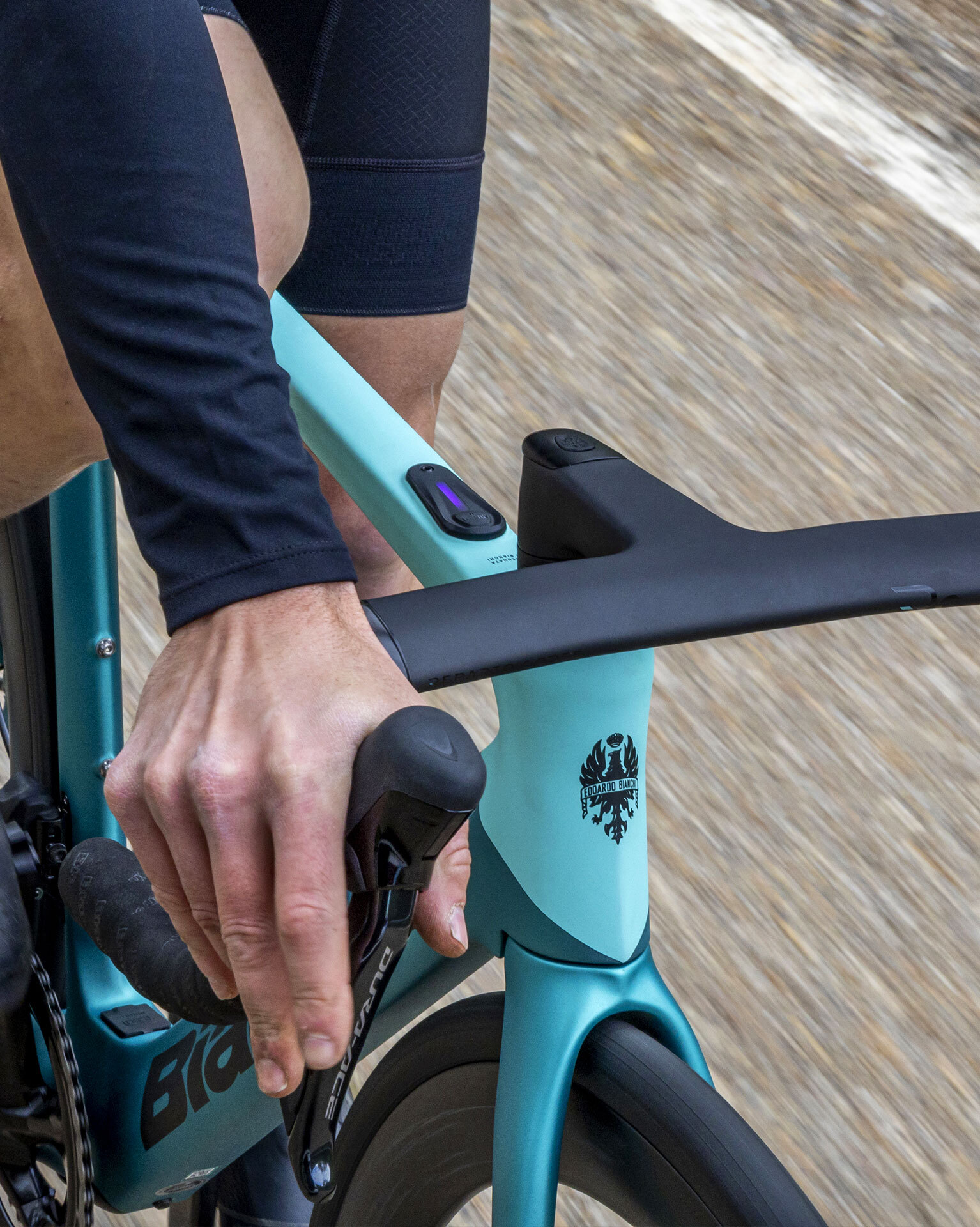

E-Oltre riders can choose from three different levels of assistance, with a maximum range of 90km (and a further 55km if the range extender is used). Assistance level is controlled by the ANT / BLU compatible head unit (where you can also see key data from your ride) or with the remote shifters on the drop-bar.
CHOOSE YOUR EXPERIENCE

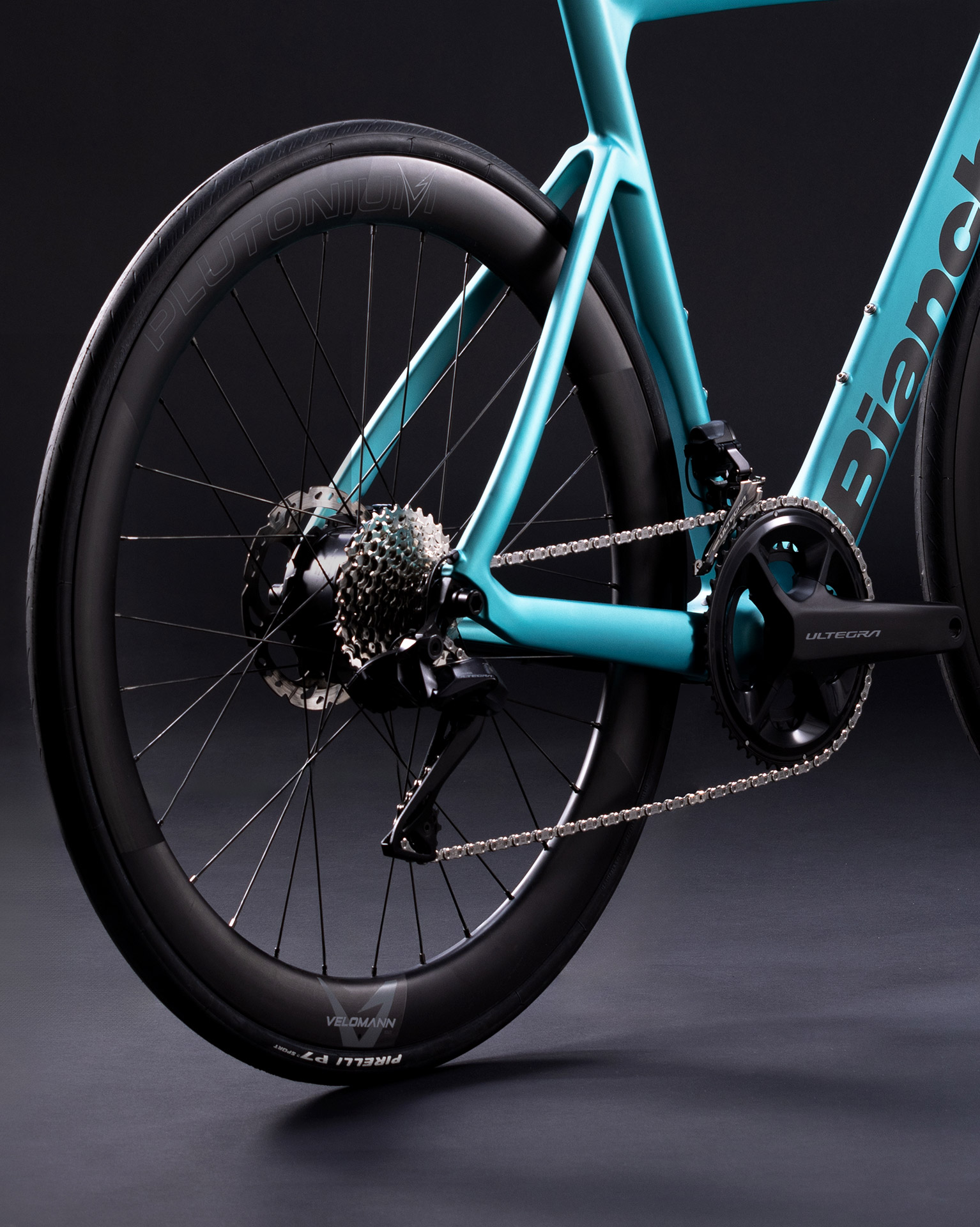

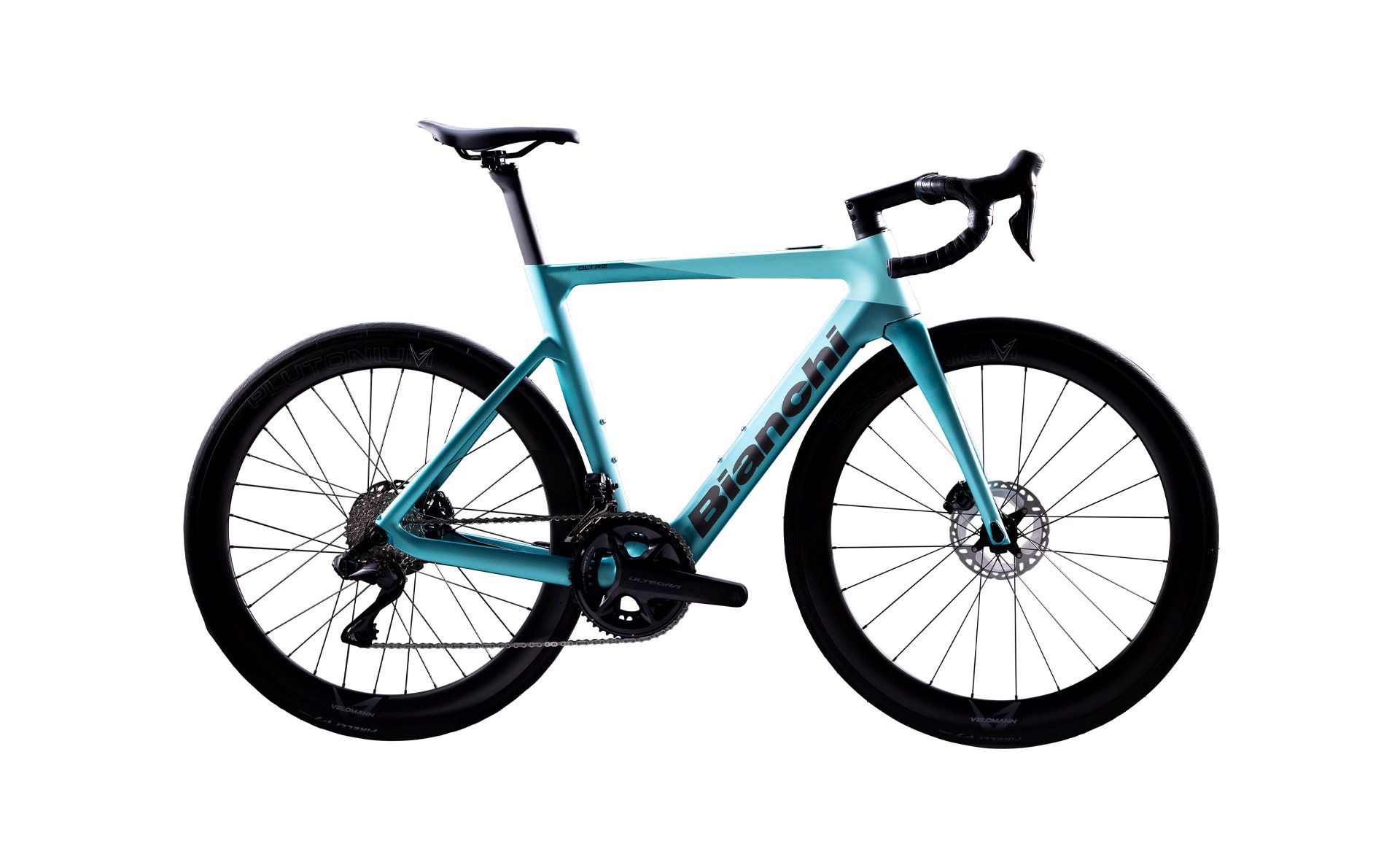

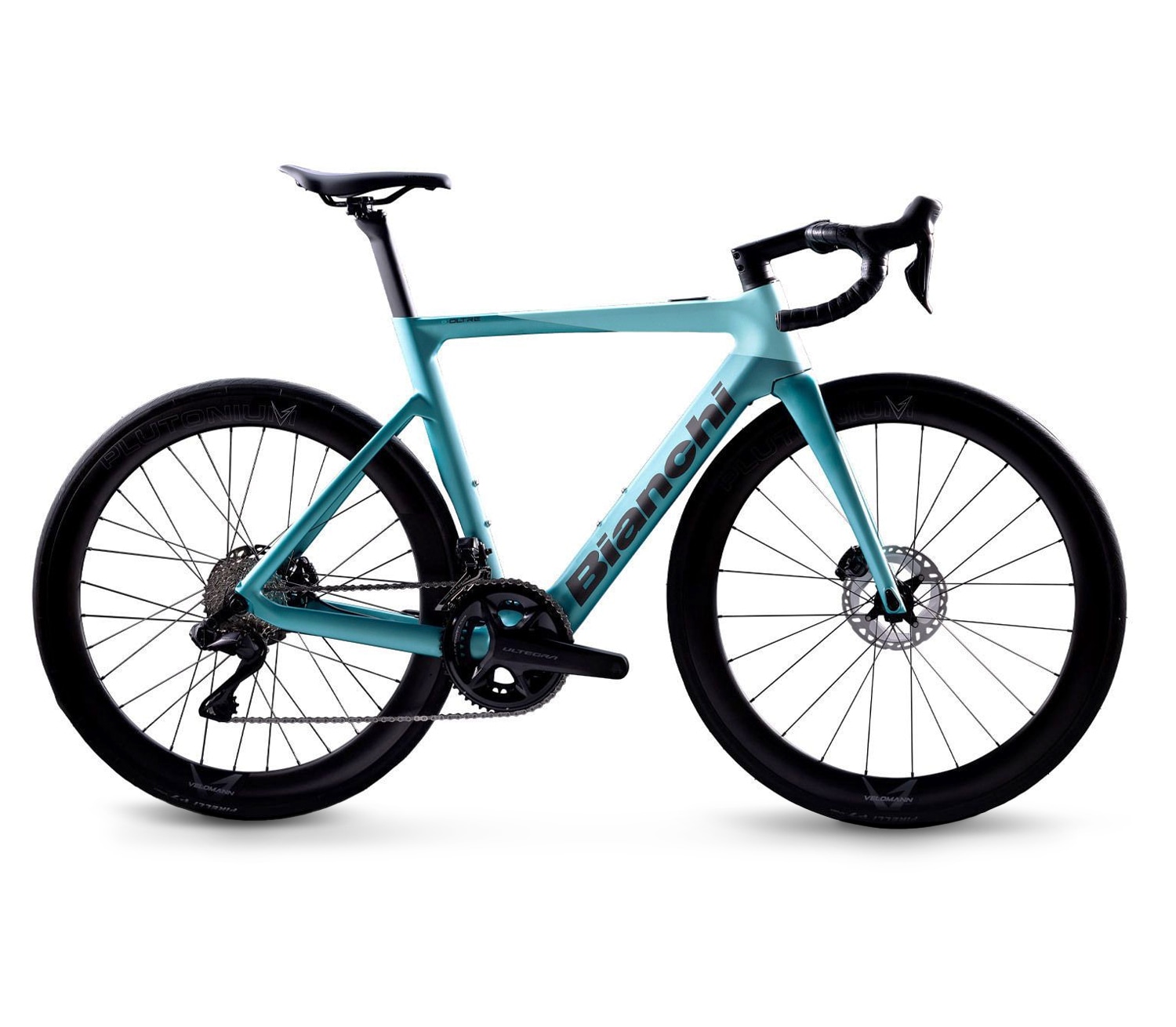

The e-Oltre is offered in a classic celeste colourway, accented with metallic celeste inserts and black Bianchi wordmark on the down tube. It can be purchased Dura-Ace Di2 and Ultegra Di2 electronic shifting groupset and full internal cable routing or Shimano 105 mechanical groupset with semi-internal cables.
FULL BIKE WEIGHT
Shimano Dura-Ace Di2: 11Kg
Shimano Ultegra Di2: 11,5Kg
Shimano 105: 12Kg

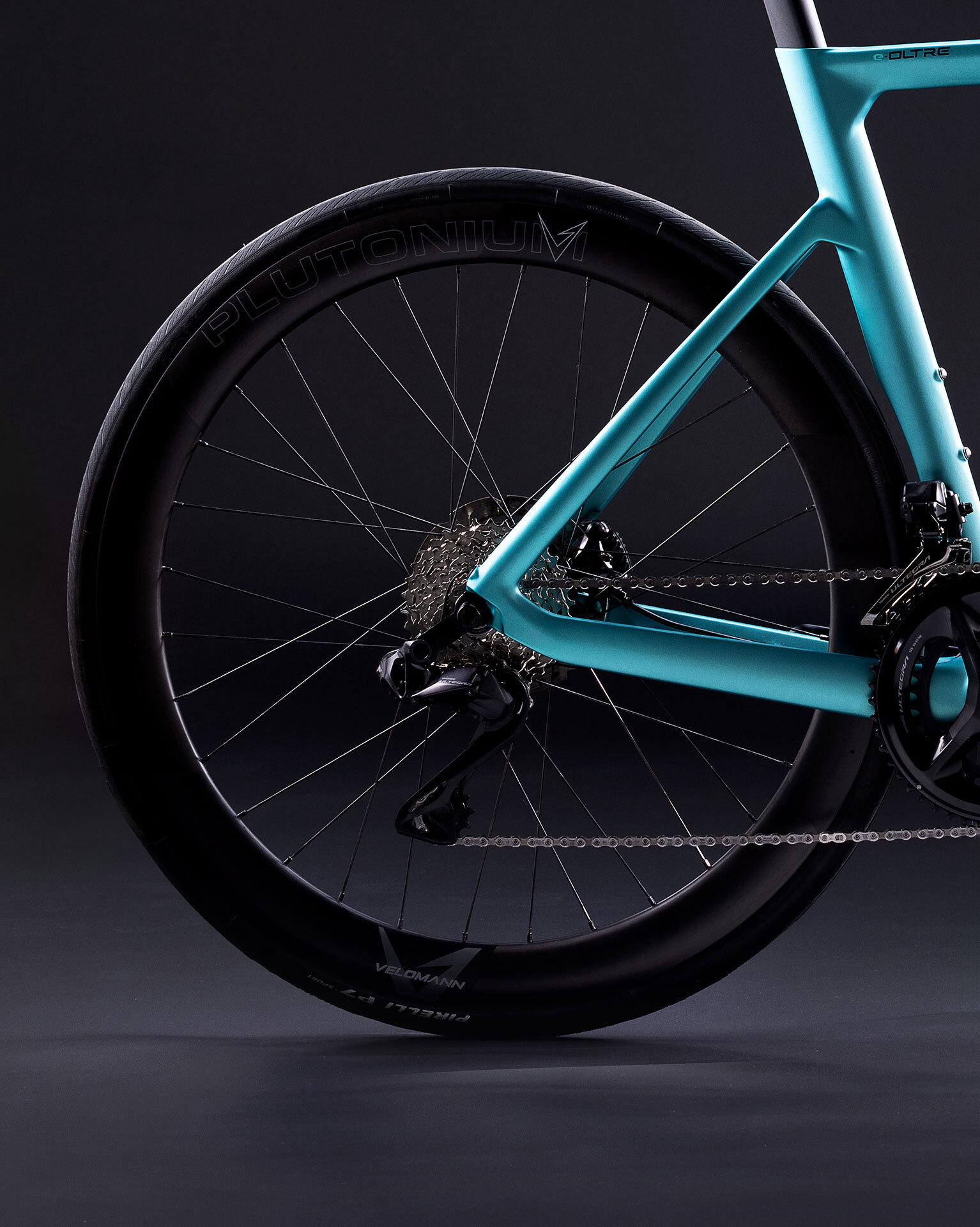

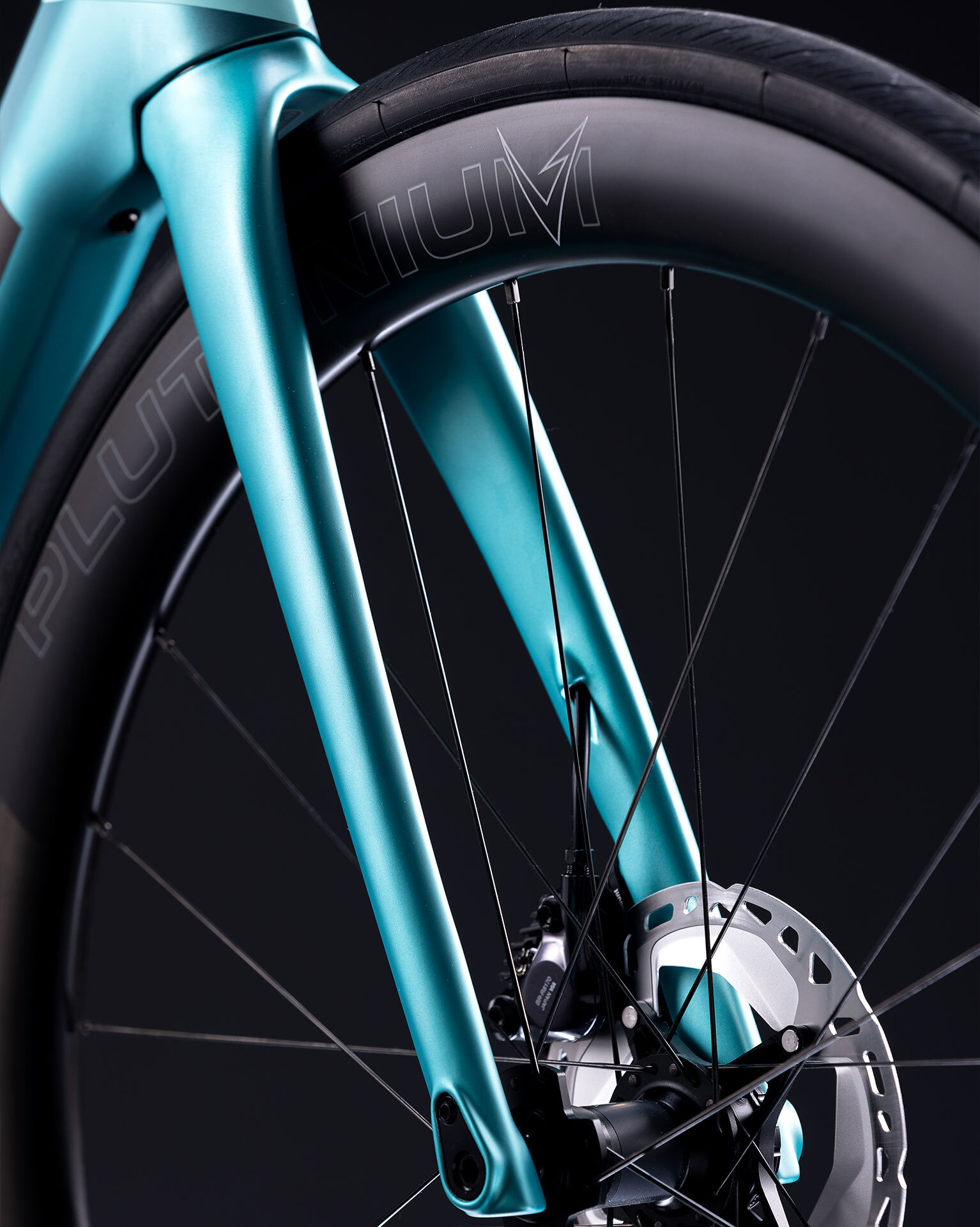

AERO WHEELS
The e-Oltre is equipped by Bianchi with new Velomann Plutonium carbon wheels:
- 50mm aero profile
- 21mm inner channel, hooked
- tubeless ready
Size & Frame Geometry
| SIZE | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470 | 440 | 515 | 410 | 58 | 105 | 581 | 74.5° | 70.5° | 43 | 368 | 379 | 490 | 982 |
| 500 | 470 | 525 | 410 | 58 | 110 | 582 | 74.5° | 71.5° | 43 | 368 | 387 | 499 | 983 |
| 530 | 500 | 535 | 410 | 68 | 125 | 583 | 74° | 72° | 43 | 368 | 385 | 525 | 984 |
| 550 | 520 | 550 | 410 | 68 | 140 | 588 | 73.5° | 72.5° | 43 | 368 | 390 | 541 | 988 |
| 570 | 540 | 560 | 410 | 68 | 155 | 593 | 73.5° | 73° | 43 | 368 | 395 | 557 | 994 |
| 590 | 560 | 575 | 412 | 68 | 175 | 603 | 73° | 73° | 43 | 368 | 397 | 576 | 1006 |
| 610 | 580 | 585 | 414 | 68 | 195 | 607 | 72.5° | 73° | 43 | 368 | 398 | 595 | 1012 |
