Frame kit
Frame
Bianchi Via Nirone 7, Aluminium, Flat mount
disc, BSA, Thru axle, OLD: 142 mm, Front
derailleur: band type, Internal cable routing sizes
47-50-53-55-57-59-61
Fork
Bianchi Full Carbon, 1,5″, disc brake flat mount, thru axle 12×100 mm
Headset
Acros for internal cable routing
Drivetrain
Shifters
Shimano CUES ST-U3030 9 Speed
Crankset
Shimano Cues U6030-1 40T Crank length: 165
mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm
(57-59-61 cm)
Rear Derailleur
Shimano GS RD-U4000
Bottom Bracket
Shimano BB-RS501, BSA
Chain
Shimano CN-LG500, 10sp
Cassette
Shimano CS-LG300 11/46T
Brakes
Brakes
Shimano/Sram Brake included in the shifter
Brake lever
Included in the shifter
Rotor
Shimano SM-RT10, 160 mm
Wheels
Wheels
Bianchi 32 Hole 700C – ETRTO 622 x 19C
Tire
Rubena X Road 700x40C Black
Cockpit
Stem
Bianchi AL6061, rise -7° Size: 90 mm (47-50 cm); 100 mm (53 cm); 110 mm (55-57 cm); 120 mm (59-61 cm)
Handlebar
Included in the stem
Grips / Extensions
Bianchi Hexagon tape, 2.5 mm thickness, black
Saddle
Seatpost
Bianchi SP02.1 27,2 Alluminium Black length:
300 mm 15 offset (47-50 cm); 350 mm 15 offset
(53-55-57-59-61 cm)
Saddle
Velomann NC black 2315 HRN 263x158mm
Seatpost Clamp
Bianchi Custom

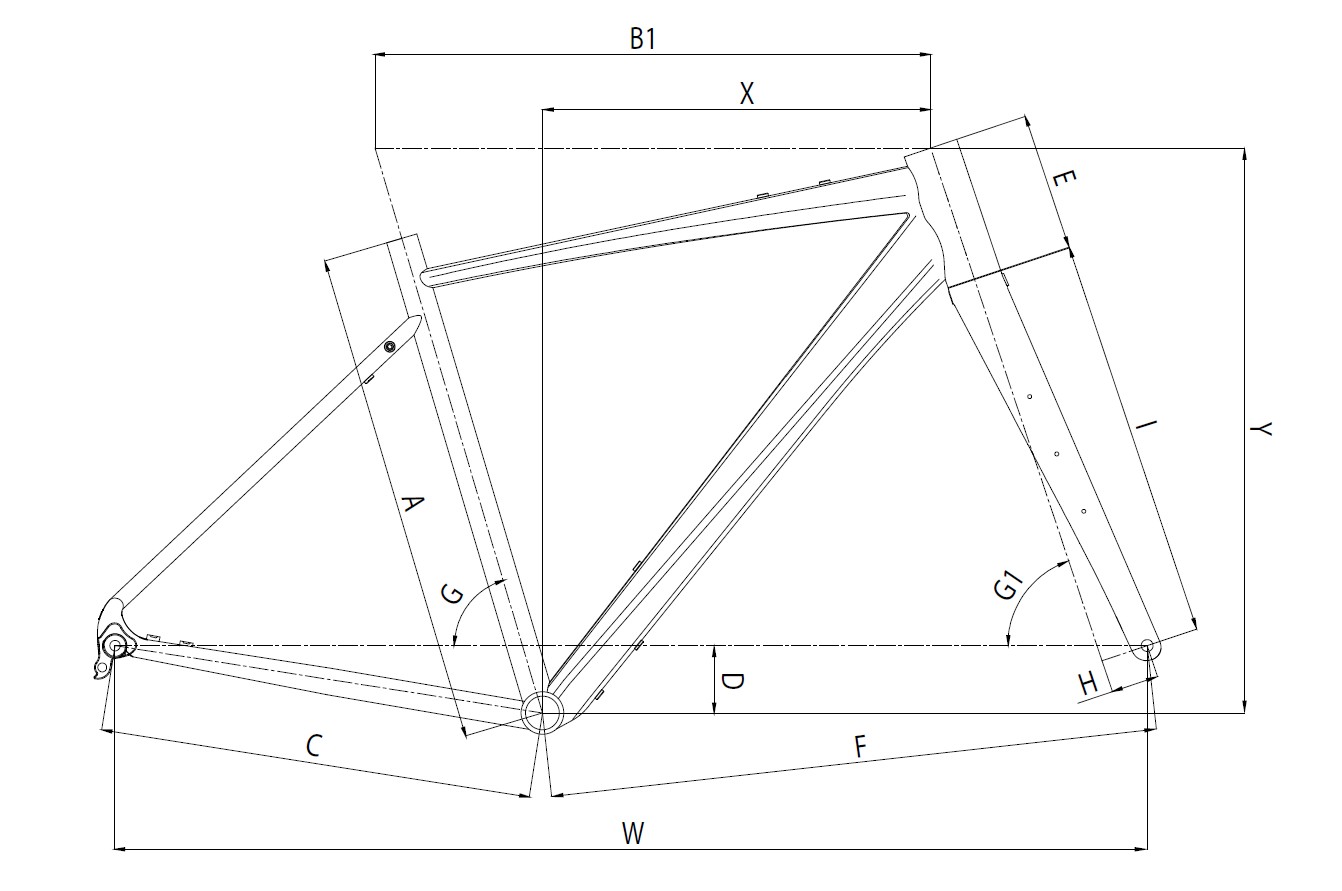

| SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | W |
| 470 | 420 | 531 | 437 | 68 | 100 | 597 | 73,5° | 70° | 48 | 406 | 375 | 527 | 1025 |
| 500 | 450 | 540 | 437 | 68 | 113 | 602 | 73,5° | 70,5° | 48 | 406 | 380 | 541 | 1030 |
| 530 | 480 | 551 | 437 | 68 | 127 | 609 | 73,5° | 71° | 48 | 406 | 386 | 556 | 1037 |
| 550 | 500 | 561 | 437 | 68 | 140 | 615 | 73,5° | 71,5° | 48 | 406 | 392 | 570 | 1042 |
| 570 | 520 | 575 | 437 | 68 | 160 | 624 | 73,5° | 72° | 48 | 406 | 400 | 591 | 1052 |
| 590 | 540 | 590 | 437 | 68 | 180 | 634 | 73,5° | 72,5° | 48 | 406 | 409 | 612 | 1062 |
| 610 | 560 | 604 | 437 | 68 | 203 | 649 | 73,5° | 72,5° | 48 | 406 | 416 | 634 | 1077 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| Color | GE – Yellow Ocher / Black, RL – CK16 / CK Metallic |
|---|
