Components and graphic details may differ from the actual model.
Need help?
Maintenance
Find out how to take care of the product
Manuals
Everything you need to know about your bike
Legal warranty
Discover the terms and conditions
Conventional lifetime warranty
Find out all the details about the terms and conditions of the conventional lifetime warranty
Frameset
Frame
Bianchi Magma 29, aluminium, OLD 9×135 QR,
post mount sizes 43-48-53
Fork
Suntour XCM32-NLO 29″, 9×100 QR, 100 mm
travel
Headset
FSA N.10 for external cable routiung
Drivetrain
Shifters
Shimano CUES SL-U4000, 9sp
Crankset
Shimano FC-U4000, 36x22T
Rear Derailleur
Shimano CUES RD-U4020, 9sp
Cassette
Shimano CS-LG300, 9sp, 11-13-15-17-20-23-26-
30-36T
Chain
Shimano CN-LG500, 10sp
Brakes
Brakes
Shimano MT-200, 2 pistons, mineral oil
Rotor
Shimano SM-RT10, 160 mm (front&Rear)
Brake Lever
Shimano BL-MT200
Cockpit
Stem
Velomann ST92A
Handlebar
Velomann MTB479A, Width: 720 mm, Barebore:
31.8 mm, Rise: 15 mm
Grips
T-One T-GP48B 130 mm
Wheels
Wheels
Mach1 6KLIXX 29, 622-32, 32 holes
Tire
Kenda Booster 30 TPI, 29×2,2″
Saddle
Seatpost
Velomann SP-7019, Diameter 27.2 mm, 350 mm
Saddle
Selle Royal SRX
Seatpost Clamp
339QX, 31.8 mm

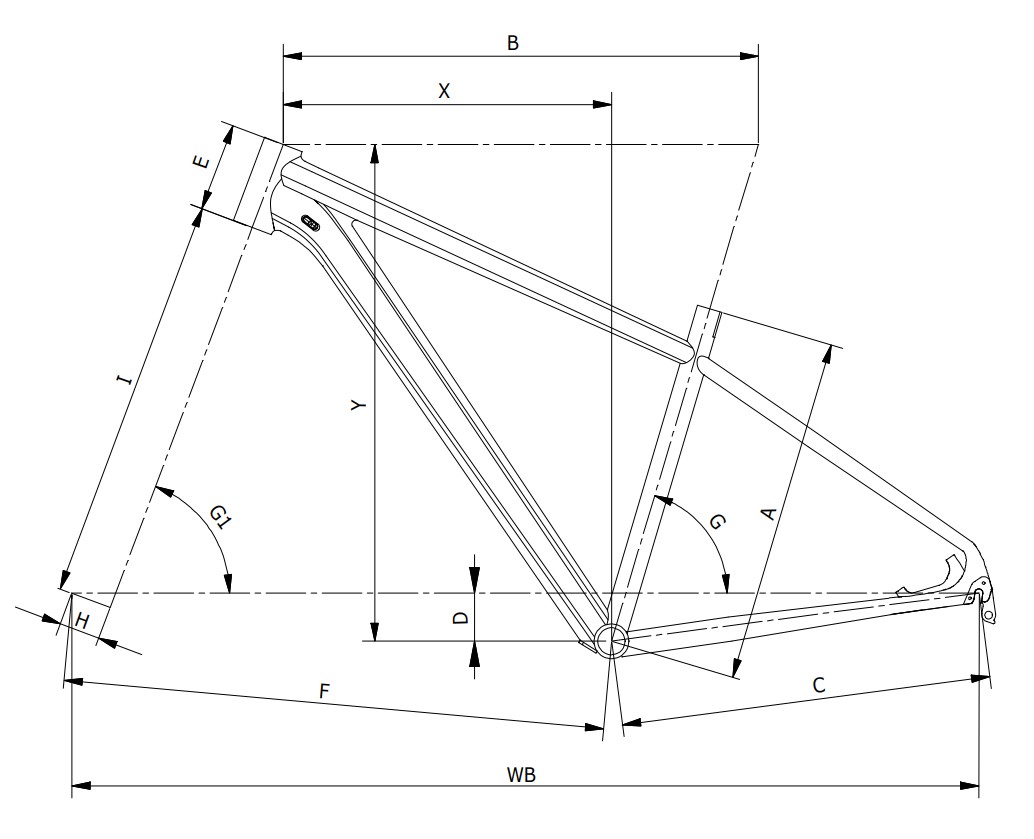

| SIZE | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 380 | 570 | 470 | 60 | 110 | 655 | 74° | 69.5° | 46 | 515 | 389 | 632 | 1118 |
| 43 | 430 | 590 | 470 | 60 | 110 | 669 | 73.5° | 69.5° | 46 | 515 | 403 | 632 | 1132 |
| 48 | 480 | 615 | 470 | 60 | 120 | 694 | 73.5° | 69.5° | 46 | 515 | 425 | 642 | 1158 |
| 53 | 530 | 635 | 470 | 60 | 130 | 715 | 73.5° | 69.5° | 46 | 515 | 442 | 651 | 1179 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | P4 – CK16 / Silver, PE – Graphite / Silver, PF – Blue / Silver |
|---|
