Frame kit
Frame
Fushita 1″1/2 Carbon Nitron HT 148mm sizes 38-43-48-53
Fork
Sram T100 ReconGoldenRL Black
Headset
Orbit ORBIT C-40 NO.42/ACB-A
Drivetrain
Shifters
Shimano Deore SL-M6100, Rapidfire Plus
Crankset
Shimano FC1 AL 32T 170mm DEORE Crank
length: 170 mm (38 cm); 175 mm (43-48-53 cm)
Rear Derailleur
Shimano XT, RD-M8100, 12sp, Shadow plus design
Cassette
Shimano Deore, CS-M6100, 10-51T, 10-12-14
16-18-21-24-28-33-39-45-51T
Chain
Shimano CN-M6100, DEORE, 128LINKS
Brakes
Brakes
Shimano/Sram Brake included in the shifter
Brake lever
Included in the shifter
Rotor
Shimano SM-RT10, 180 mm
Wheels
Wheels
Velomann 622×30, 32 hole; Front hub: Formula
CL-811; Rear hub: Shimano FH-MT510
Tire
Barzo XCR G2.0
Cockpit
Stem
Velomann ST154A Alluminuim Size: 60 mm
(38/43 cm); 70 mm (48/53 cm)
Handlebar
Fsa Alluminium Black Comet LowRiser
Grips / Extensions
T-One Rock T-GP34 single lock
Saddle
Seatpost
Velomann Aluminium, 27,2 mm, Seatback 0 mm
length: 350 mm 0 offset (38 cm); 400 mm 0 offset
(43-48-53 cm)
Saddle
Velomann Velomann Gnd Full-fit Start Up,
Carbon-steel rail, 262 mm x 145 mm

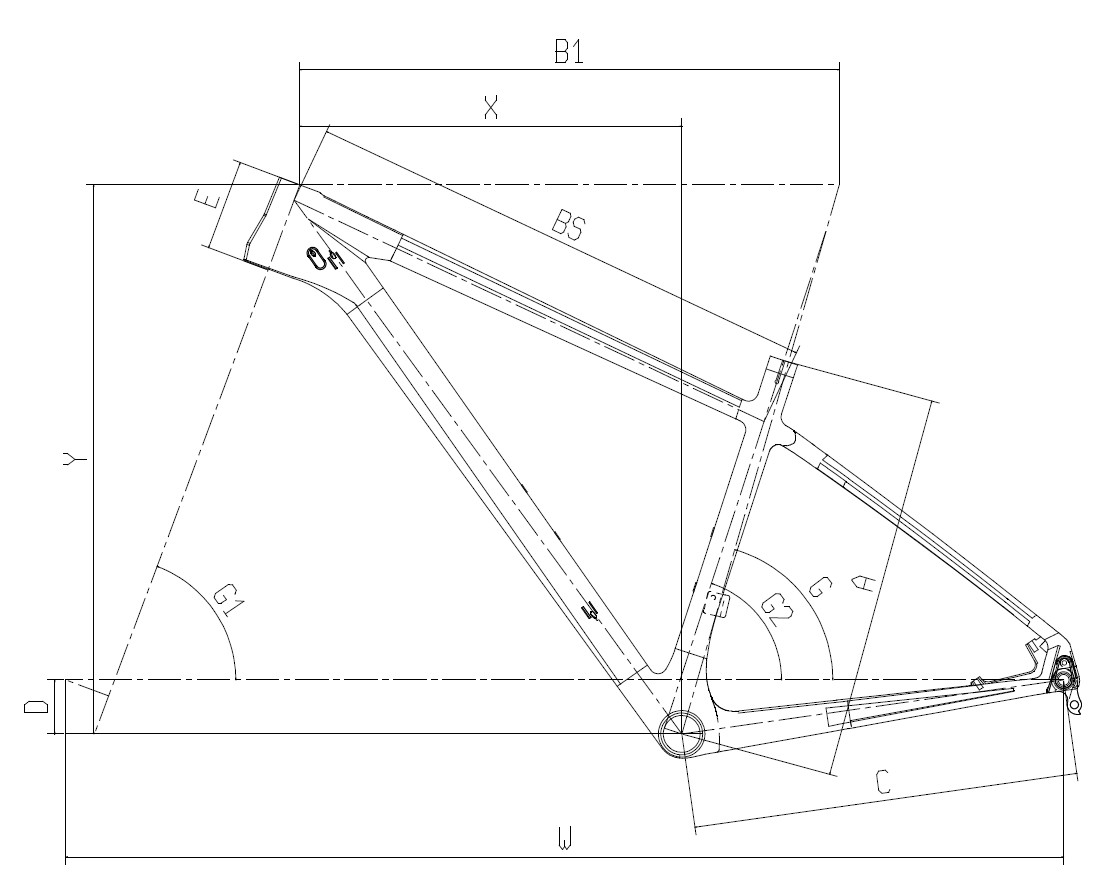

| SIZE | A | B1 | C | D | E | G | G2 | G1 | Y | X | W |
| SM | 380 | 570 | 429 | 60 | 90 | 74° | 72° | 69,5° | 601 | 397 | 1079 |
| MD | 430 | 600 | 429 | 60 | 100 | 74° | 72° | 69,5° | 611 | 424 | 1110 |
| LG | 480 | 625 | 429 | 60 | 110 | 74° | 72° | 69,5° | 620 | 447 | 1135 |
| XL | 530 | 645 | 429 | 60 | 120 | 74° | 72° | 69,5° | 629 | 464 | 1156 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
