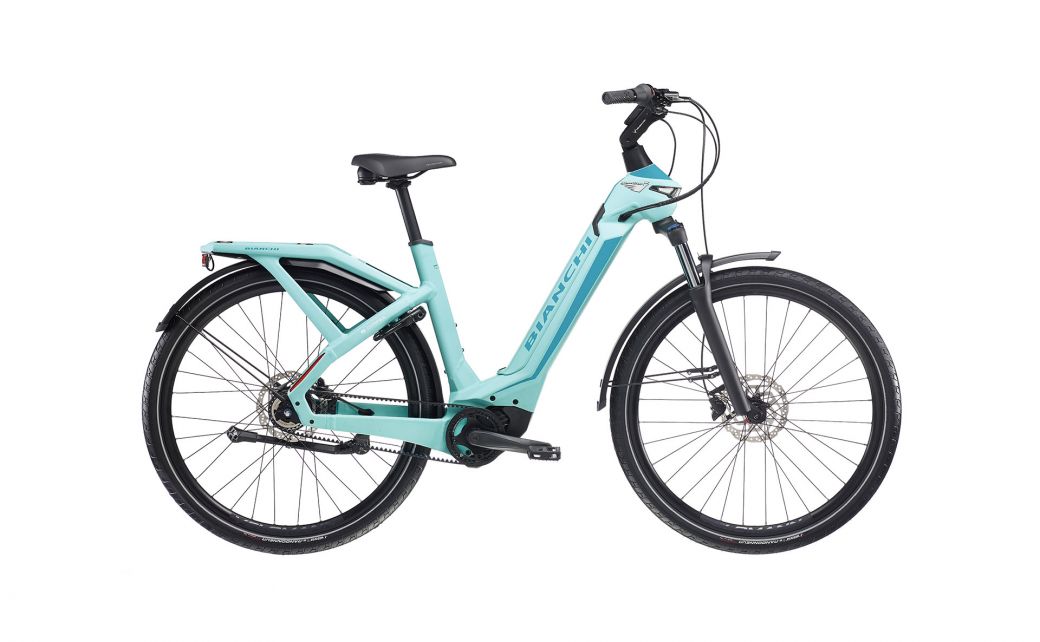

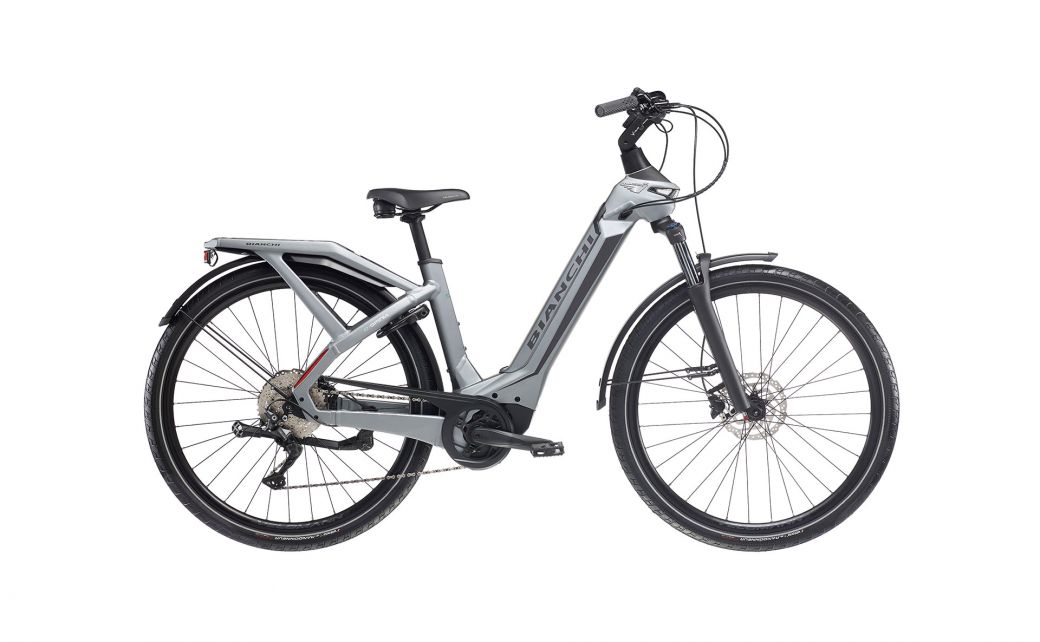

Bianchi e-Omnia C Type

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX, 250W, 85Nm, Purion display

  2. Battery

     Bosch Powertube 500Wh integrated battery

• Frameset

  1. Frame

     E-OMNIA C-Type chain drive ALU sizes: 45-50-55 - 9x135 mm quick release dropouts (special dropout for external derailleur)- Post mount 180 disc brake type- Internal cable routing in DT- Frame lock compatible- 625Wh compatible- custom rear carrier integrat

  2. Fork

     Suntour XCM34-Boost NLO DS 29", 100mm travel, 1.5" tapered HT, w/ 15AH2-110 TA, minimum 160mm rotor, maximum 203mm rotor, 34mm stanchions

  3. Headset

     FSA NO.55R/558 1.5"

• Drivetrain

  1. Shifters

     Shimano, SL-M4100-R, DEORE, 10-SPEED

  2. Rear Derailleur

     Shimano, RD-M4120, DEORE, SGS 10/11-SPEED

  3. Crankset

     FSA Metropolis, Alloy, 170mm FSA Steel Chainring 38T

  4. Bottom Bracket

     included in the motor

  5. Chain

     KMC e10S NPBK

• Brakes

  1. Brakes

     Promax, DSK-925

  2. Rotor

     Promax DSK-925, 180mm, center lock

• Wheels

  1. Wheels

     Velomann E-Sport Tubeless Ready 29", 25-622, 32 hole

  2. Rear Hub

     Formula CL-1422 Center lock, 32hole, 14G, O.L.D. 135mm AXEL145mm, for Shimano 8/9/10speed with Quick release QR22

  3. Front Hub

     Formula CL-811 for Center Lock, 32h, 15x110mm TA

  4. Tire

     Vittoria e-Randonneur, 50-622

• Cockpit

  1. Stem

     Velomann 20° W/O SP connec 31,8 90mm for SM 110mm for LG, MD

  2. Handlebar

     Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°

  3. Grips / Extensions

     Velo GRPset VEXK

• Saddle

  1. Seatpost

     Velomann 31.6*350, suspension seatpost

  2. Saddle

     Velomann, steel rail, 254x183mm

• Accessories

  1. Pedals

     VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included

  2. Mudguards

     SKS PET Mudguards A65 R /28"

  3. Kickstand

     Velomann load 35kg

  4. Rear Carrier

     custom rear carrier integrated into the frame design

  5. Front Light

     Spanninga custom integrated light, 40 lux

  6. Rear Light

     Spanninga custom integrated light

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
