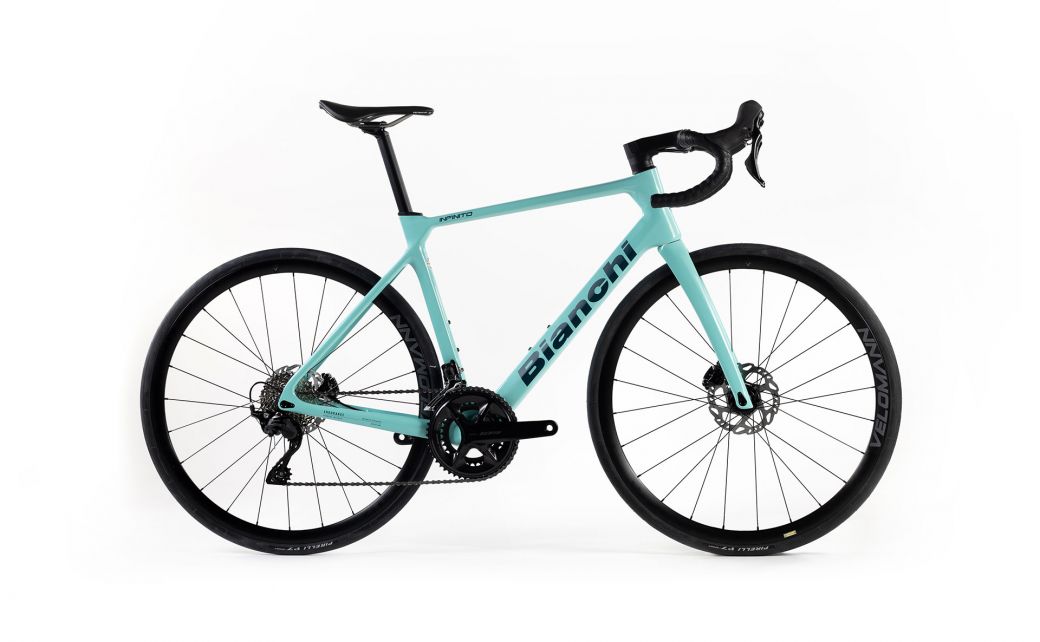

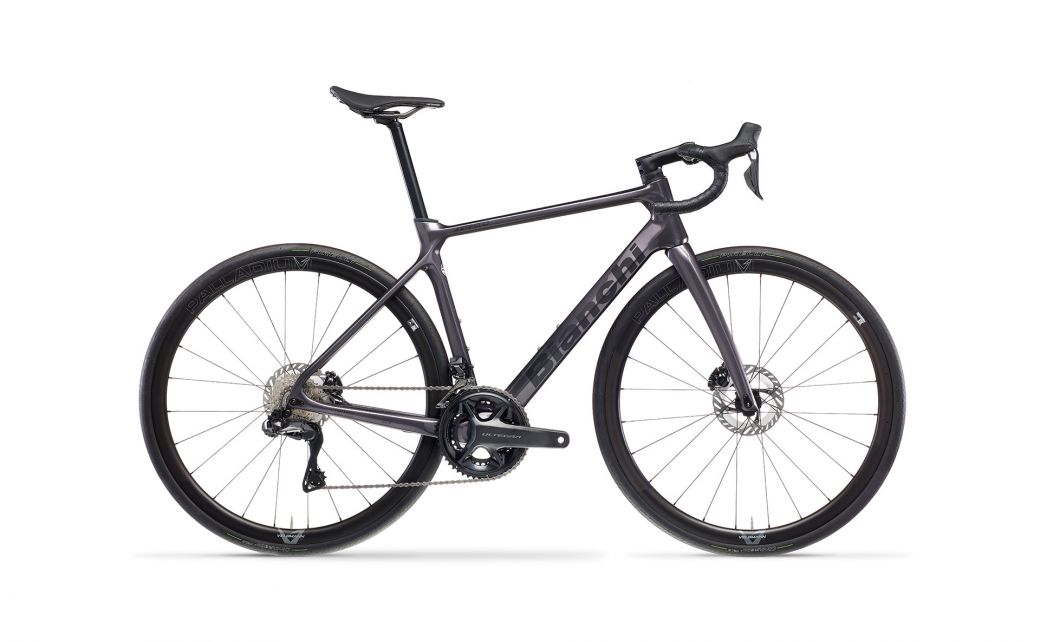

Bianchi Infinito

Tech specs

• Frameset

  1. Frame

     INFINITO carbon ICR - 1.5"- 1.5", Disc Brake, Mechanical/Electronic Di2, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle sizes 47-50-53-55-57-59-61cm

  2. Fork

     Full Carbon ICR - 28"- 300mm - 1.5" , dropout 12 x 100mm thru axle

  3. Headset

     Acros/FSA for ICR cable routing

• Drivetrain

  1. Shifters

     Shimano 105 Di2 hydraulic disc brake for road ST-R7170(L), ST-R7170 ®

  2. Rear Derailleur

     Shimano 105 Di2 12sp RD-R7150, 105 12-speed, max 36T

  3. Front Derailleur

     Shimano 105 Di2 12sp FD-R7150, brazed-on type

  4. Crankset

     105 12sp FC-R7100, hollowtech 2, for rear 12- speed, 170- 172,5-175mm, 50x34T Crank Length: 170mm-47~53cm, 172.5mm-55~59cm, 175-61cm

  5. Bottom Bracket

     Shimano KSMBB7241B pressfit

  6. Chain

     Shimano CN-M7100, 12-speed

  7. Cassette

     105 12sp 11-34T CS-R7100, 12-SPEED,11-12-13-14-15-17-19-21-24-27- 30-34T

• Brakes

  1. Brakes

     Shimano BR-R7170 Hydraulic disc brake included in the shifter

  2. Rotor

     Shimano SM-RT70, 160mm front rear

• Wheels

  1. Wheels

     Fulcrum Racing918 disc brake, 2 way fit, C19

  2. Tire

     Vittoria Zaffiro V 700x28c, 26TPI, G2.0

• Cockpit

  1. Stem

     Velomann Viper, Alloy 6061, raise - 7°, Oversize, 1 1/8" Ext: 90mm-47cm, 100mm-50'53cm, 110mm-55~57cm, 120mm-59~61cm

  2. Handlebar

     Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-47~53cm,420mm-55~57cm, 440mm-59"61cm

  3. Grips / Extensions

     Bianchi cork, full black

• Saddle

  1. Seatpost

     Velomann, custom D-shape, alloy shaft 2014, head alloy 6061, Setback 25mm L350mm =47>57cm; L380mm= 59>61cm

  2. Saddle

     Velomann VL-1966, steel rail, 250x148mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
