Frameset
Frame
Spillo Rubino Deluxe 28″Rigid Alloy 6061
1.1/8″ size: 47-55, O.L.D.135mm
Fork
28″Road 1.1/8″
Headset
1.1/8″X26T Steel Silver
Drivetrain
Shifters
Shimano 7-Speed Ez-Fire plus, 2F-alloy, for V- Brake,
black, Index Wire/2050mm
Left Shifter 3-Speed Ez-Fire plus, 2F-alloy, for V-Brake,
black, Index Wire/1800mm
Crankset
Crankset TCXE6-VZ(A4P6) 48X38X28
black/steel silver/steel silver
Cassette
Shimano AMFTZ5007428 7-speed 14-28 w/thread
Rear Derailleur
Shimano, RD-TY500, Tourney, 6/7-speed, diretc
attachement type, w/wheel type cable guide, bulk
Bottom Bracket
CH 52-68 diagonal cotterless/bolt L:127mm 4pcs w/
bolt ENM
Rear Derailleur
Shimano, FD-TY510-TS3, Tourney, top-swing, dual-pull,
for rear 6/7speed, band type (w/31.8mm adapter), CS
angle:63-66 for 48T.CL:47.5/50mm
Chain
Shimano CN-LG500, 10sp
Brakes
Brakes
V-brake set HJ- 621ADX-SV silver Al. L:103mm 90/2
pipes ENM w/ ID 5mm Pipe cap
Hub
Rear: KT-A15F Alloy silver 36H, silver QR, MQSP141NSI A:109-
B:126-C:149 M9X100X108
Front: KT-A1ER Alloy Lathing natural/36H /quick- release
135X145 Threaded FW:40,5mm
Brake Lever
included in the shifter
Cockpit
Stem
MTS-C299N-5 (C297) Adjustable Alloy High polished
Silver E:90 DIA:25.4 L:180mm
Handlebar
HL-NR-AL-16 High polished an. Silver alloy W:590
R:26 DIA:25.4 BS:33 DG silver
Wheels
Wheels
28/622X19 Freeway D-Wall Al balck 36H D:6.5 HBP
Tire
700X35C 37-622 C-1880 Xpedium
Saddle
Seatpost
SP-242 Alloy silver L:350mm DIA:27.2mm
Saddle
Selle Royal RIO renna Brown (8073), RVS, silver steel
rail, w/clamp
Seatpost Clamp
Alloy Silver Dia:31.8mm Quick-Release, Silver
Accessories
Pedals
body/PP-Black 2#, 9/16″ Boron, BS Ball-Type EN
Front Light
Spanninga JOS Illico
Mudguards
28″ RAPIDO BIA2822-00177 46mm Silver foil,1Nose
rear mudflap aid sliding bridge zinc coated
Rear Light
SPARK RED
Kickstand
CD-122 Alloy, 20”-28” adjustable, Silver/esge black
allen bolt dacromet

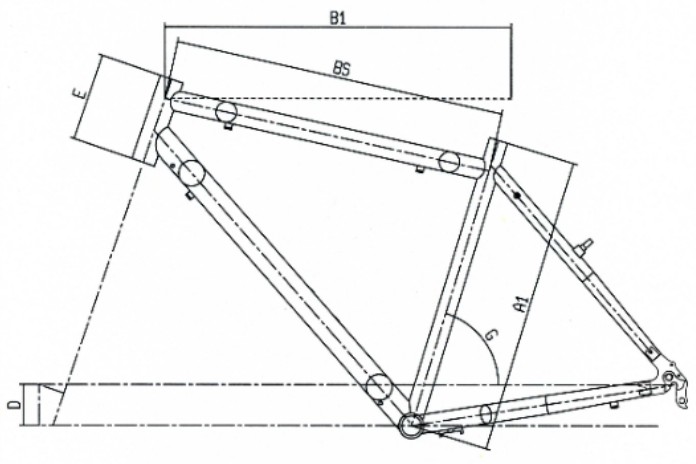

| SIZE | A1 | B1 | BS | D | E | G |
| 47 | 470 | 575 | 550 | 70 | 130 | 73° |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | 4Y – Black, LK – Celeste Vintage |
|---|
