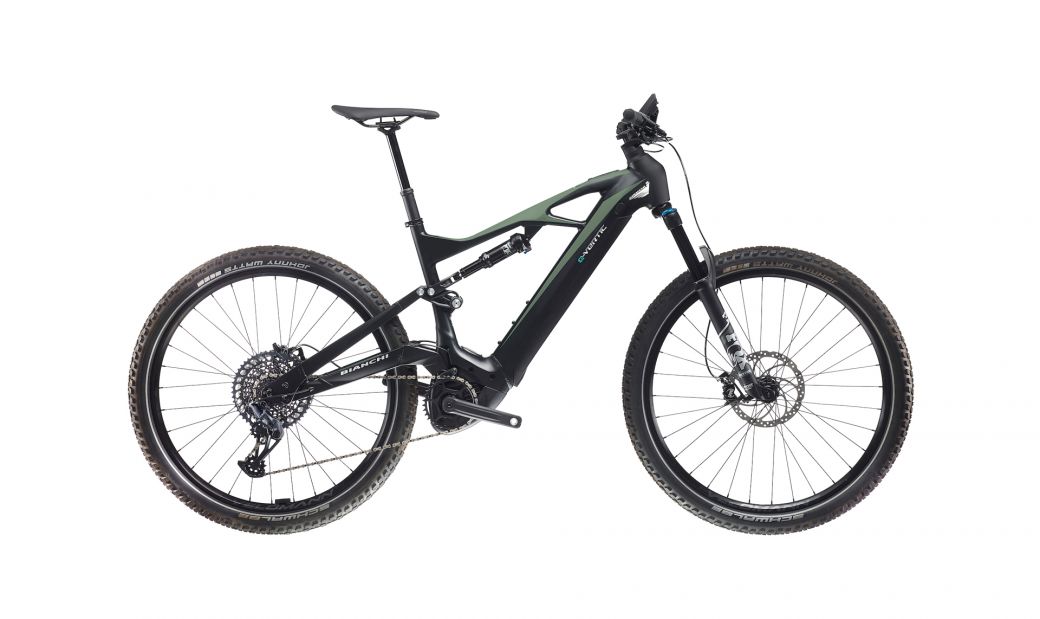

Bianchi e-Vertic FX-Type

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX Smart System

  2. Battery

     Bosch Powertube 750wh integrated battery

• Frameset

  1. Frame

     e-VERTIC FX-Type FULL SUSPENDED ALU. Sizes: 43-48-53 - 140 mm front travel - 140mm rear travel - Fender + Rack mounting points - HT 1,5” straight - for integrated cable routing - Seatpost 31,6 mm - 12x148 mm dropouts -

  2. Fork

     Rock Shox 35 SILVER TK CROWN ADJUST 29" FENDER COMPATIBLE MXL STEALTH BOOST™ 15X110MM AXLE SOLO AIR 140MM, UPPERS 44 OFFSET TAPERED STEERER A1

  3. RearShock

     Rock Shox Deluxe Select, 210/55, DebonAir Linear, Shaft 25x8

  4. Headset

     Acros 1.8" top / 1.5" bottom - bearings - internal cable routing - w/ blocklock

• Drivetrain

  1. Shifters

     Sram SX EAGLE 1x12 trigger single click for e-bike

  2. Rear Derailleur

     Sram SX EAGLE 12sp

  3. Crankset

     FSA Direct Mount Steel Chainring - 34T / w/HT Steel CK-320 FSA E-Bike Diecast Crankset - ISIS / 170mm / Die cast aluminum

  4. Bottom Bracket

     included in the motor

  5. Chain

     Sram SX EAGLE, 12sp

• Brakes

  1. Brakes

     Shimano DISC BRAKE ASSEMBLED SET, BL-M4100, BR-MT420, RESIN PAD, 800MM HOSE/1700 HOSE

  2. Rotor

     Shimano, L 203MM / M 180MM , W/LOCK RING, FOR RESIN PAD ONLY

• Wheels

  1. RearHub

     Shimano, CENTER LOCK DISC(W/O LOCK RING) 8-11-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM

  2. FrontHub

     Shimano, CENTER LOCK DISC 32H, FOR 15MM THRU TYPE AXLE, OLD:110MM, W/O LOCK RING

  3. Tire

     Continental Ruban black/black foldable skin SL

• Cockpit

  1. Stem

     Velomann Ursa, 50 mm, 35 mm, 1"1/8

  2. Handlebar

     Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9°, double butted AL7050

  3. Grips

     T-One Rock T-GP34 single lock grip , TPR, plastic inner body, aluminium clamp

• Saddle

  1. Seatpost

     Alpha1 Series - 31.6 mm - Remote RM07 I-Spec EV - 1800 mm cable length - Velomann logo 125 mm - for size M 150 mm - for size L/XL

  2. Saddle

     Fi'zi:k Terra Aidon X5 - 160mm - fiber reinforced nylon with Wingflex - S-Alloy Mobius 7x7mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
