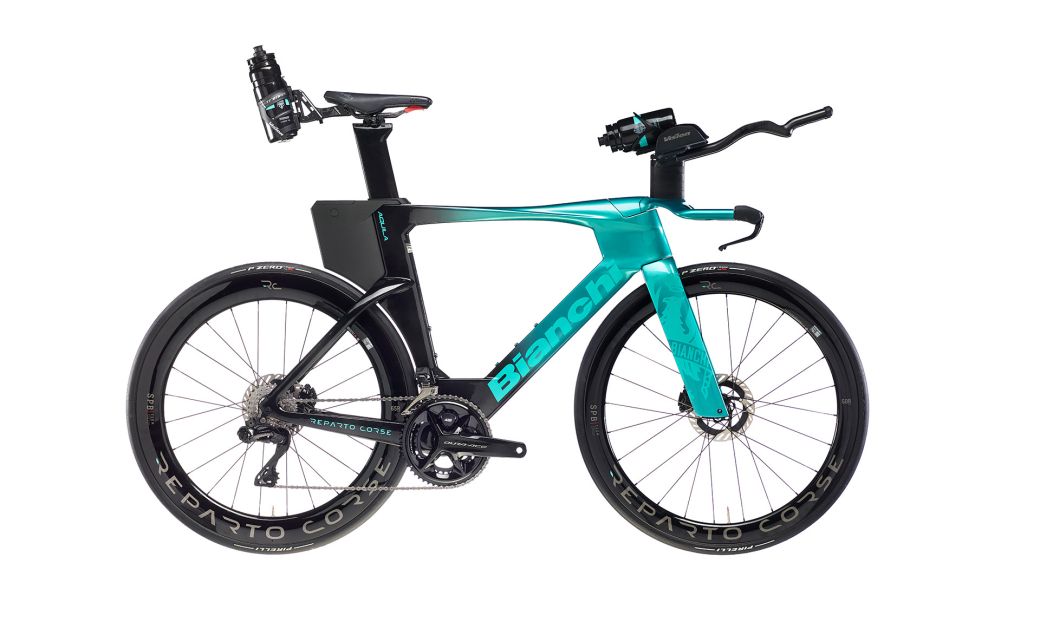

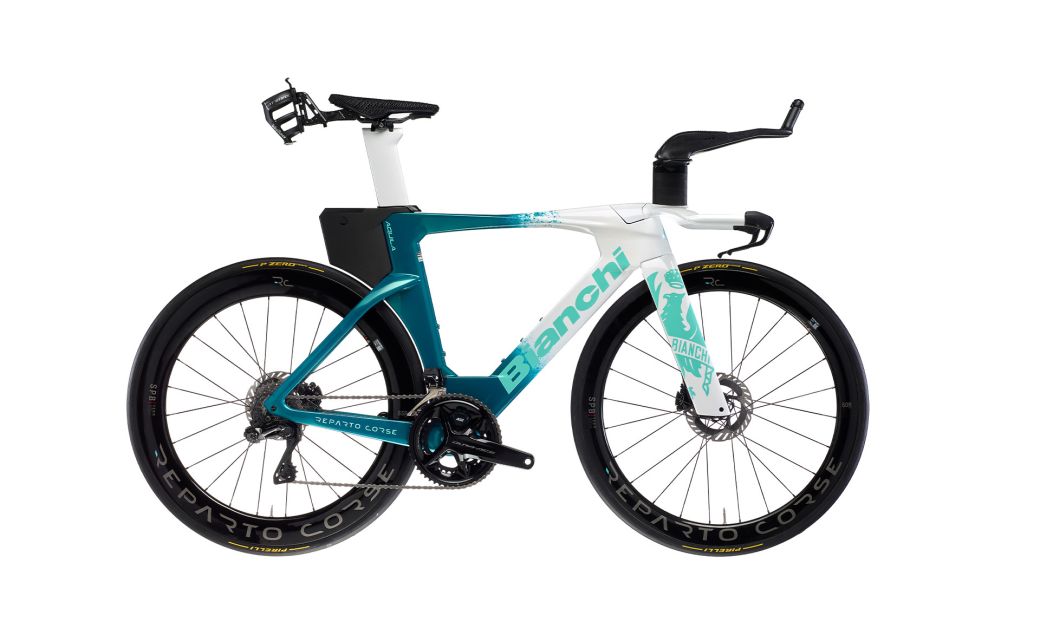

Bianchi Aquila RC

Tech specs

• Frameset

  1. Frame

     Bianchi AQUILA, Disc brake: Flat Mount 140/160, Bottom bracket: PressFit 86.5x41, Thru axle: 12x142 mm, Max chainring: 58T (2x) - 62T (1x), Max tire clearance: ETRTO 622-28 mm sizes SM- MD-LG

  2. Fork

     Bianchi Aquila, Disc brake: Flat Mount 140/160, Thru axle: 12x100 mm, Max tire clearance: ETRTO 622-28 mm, Steering tube diameter: 1 1/8"

  3. Headset

     FSA Custom

• Drivetrain

  1. Shifters

     Sram S-900 Aero HRD with Remore Switch

  2. Rear Derailleur

     Sram Rival AXS E1, 12sp

  3. Front Derailleur

     Sram Rival AXS E1

  4. Crankset

     Sram Rival E1, 48x35T Crank length: 165 mm (SM) 170 mm (MD); 172.5 mm (LG)

  5. Bottom Bracket

     Sram Press fit Road 86.5x41

  6. Chain

     Sram Rival E1

  7. Cassette

     Sram Rival XG 1250 D1, 10-36, 10-11-12-13-15- 17-19-21-24-28-32-36T

• Brakes

  1. Brakes

     Sram Rival E1, Hydraulic disc brake

  2. Brake Levers

     Included in the shifter

  3. Rotor

     FRONT: Sram Centerline, Center Lock, 160 mm / REAR: Sram Centerline, Center Lock, 160 mm

• Wheels

  1. Wheels

     Velomann V30R, alloy, internal channel width 23 mm, profile height 30 mm, 2 to 1 spoke pattern, j- bend spokes, black, XDR body, weight: 1790 g

  2. Tire

     Pirelli P Zero Race SL TLR, 28-622, 120 TPI

• Cockpit

  1. Stem

     Bianchi Included in the handlebar

  2. Handlebar

     Bianchi Reparto Corse by Vision, Diameter of steering tube interface: 1 1/8", Misura: 110/400 mm (SM-MD-LG) - Extensions: Vision JS bend Carbon, comaptible with Vision TFE extensions (not incluse), bridge for TFE not included

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5 mm thickness, black

• Saddle

  1. Seatpost Clamp

     Bianchi Custom

  2. Seatpost

     Bianchi Custom Airfoil Shape, Offset: Ritchey Rail length: 280 mm (SM); 300 mm (MD); 350 mm (LG)

  3. Saddle

     Selle Italia Watt, 3D, Manganese rail, Triathlon specific

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
