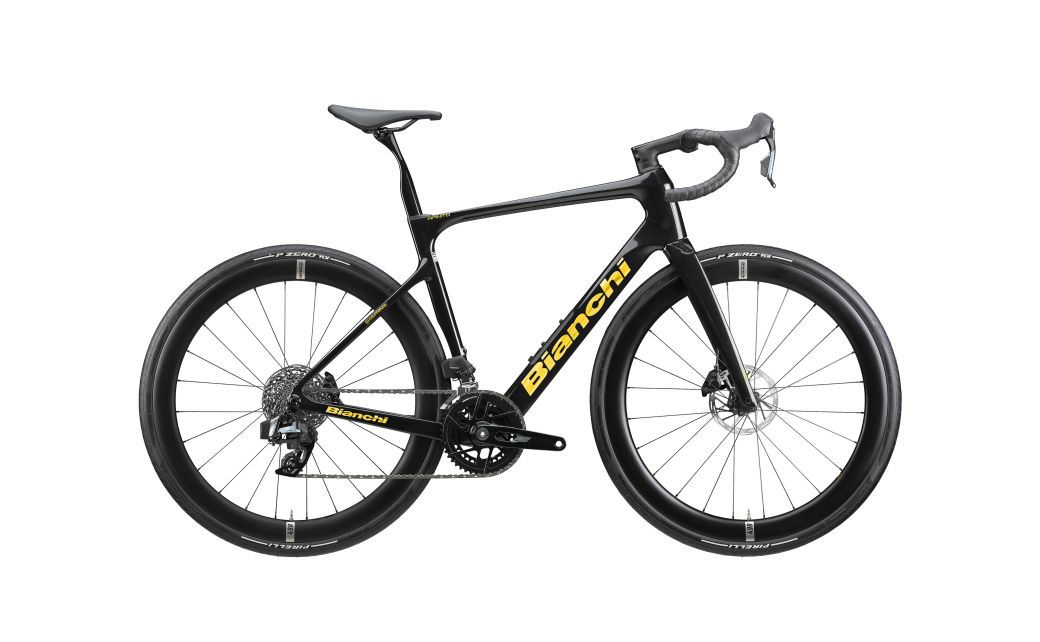

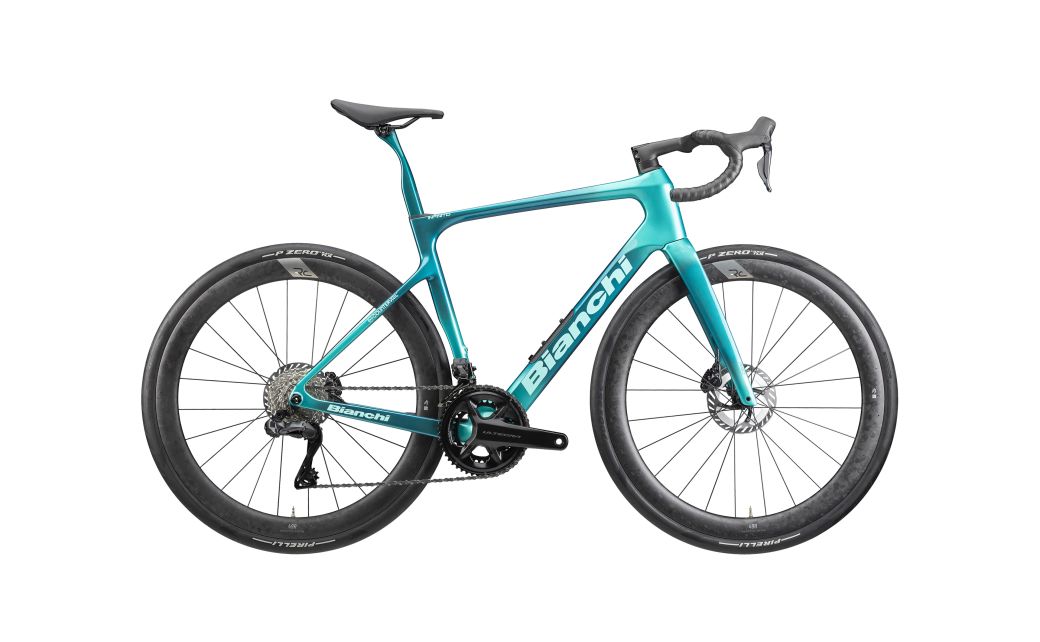

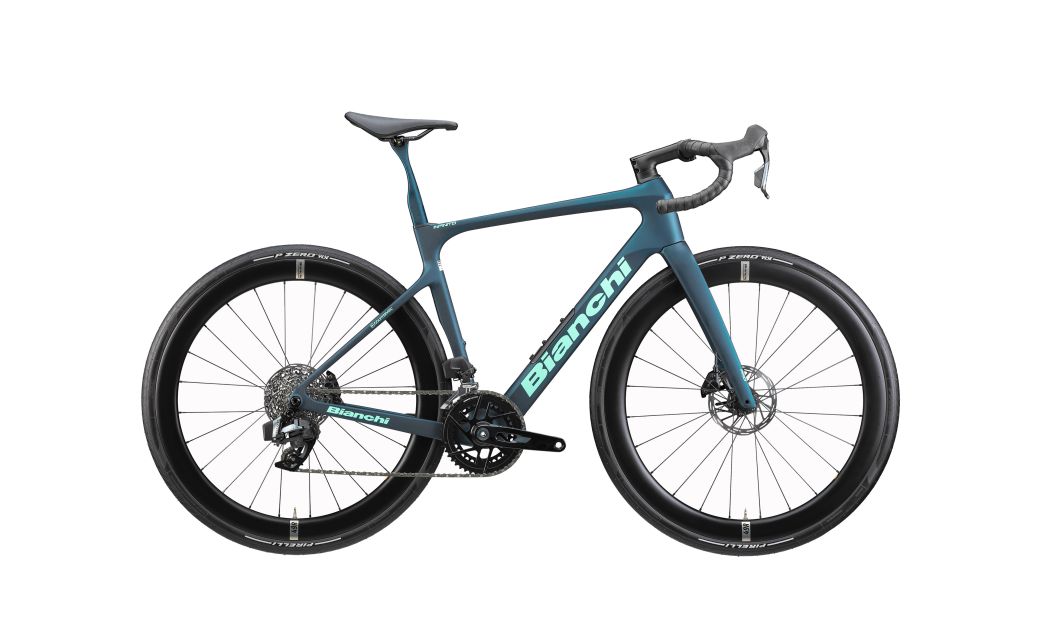

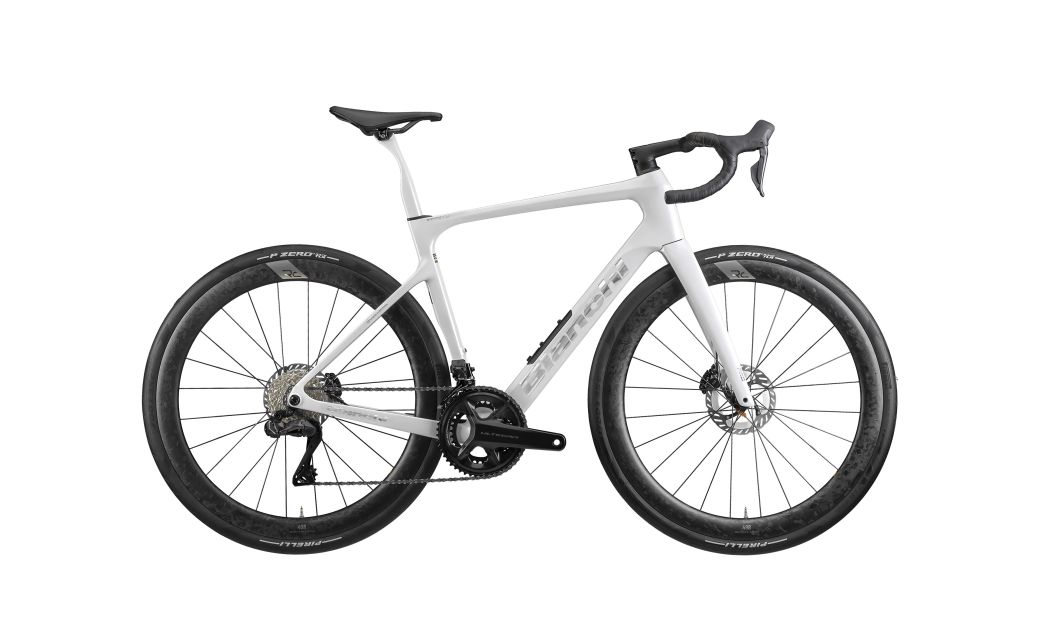

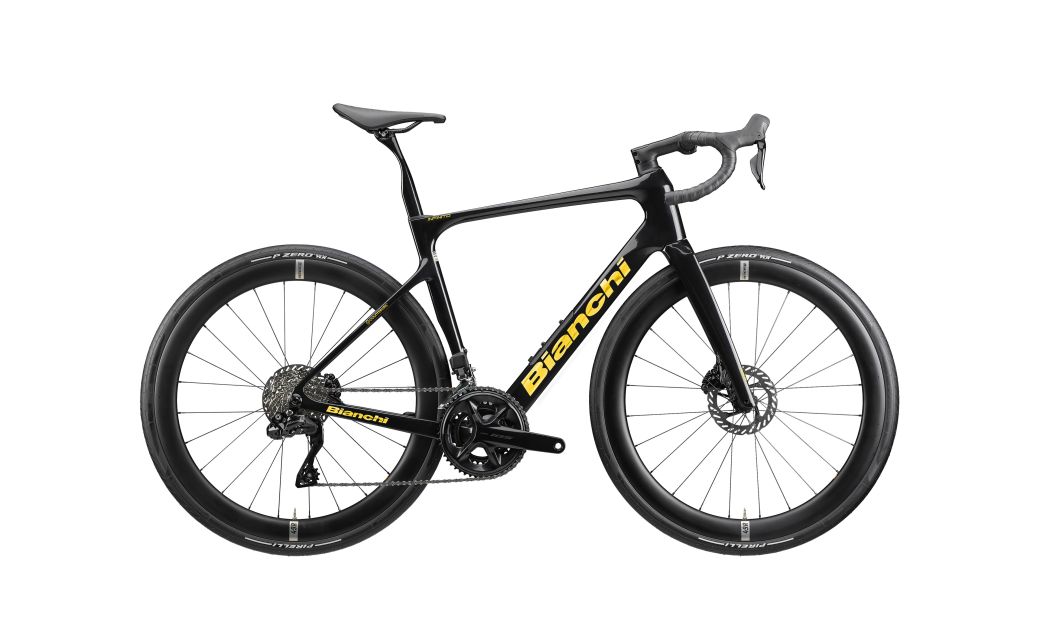

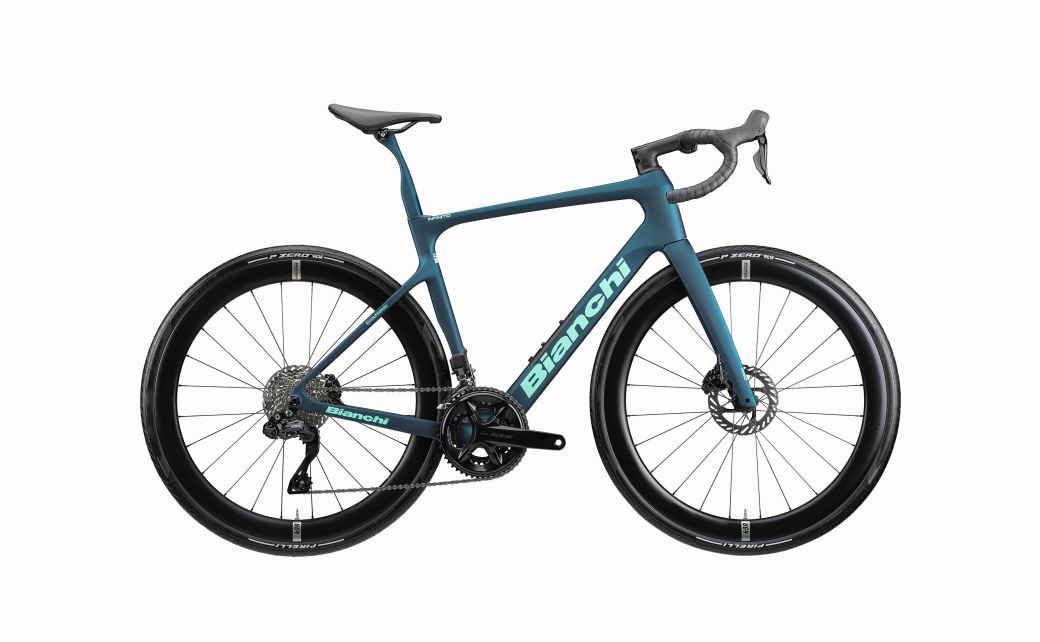

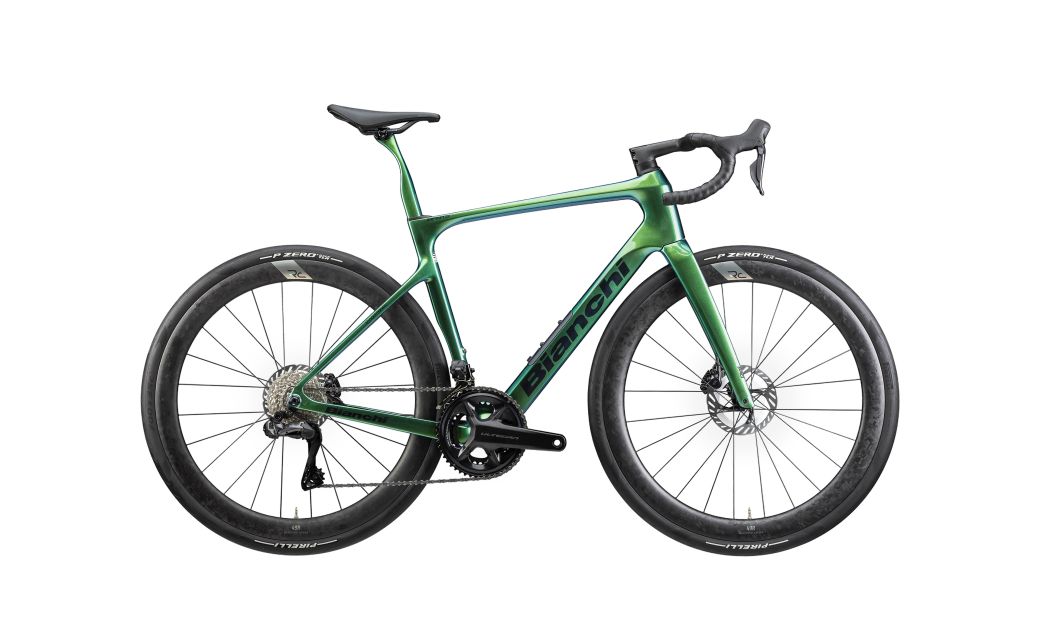

Bianchi Infinito Pro

Tech specs

• Frameset

  1. Frame

     Bianchi Infinito Pro, Flat mount 140/160, PressFit 86.5x41 mm, Thru Axle 12x142 mm, Sram UDH compatible, Max chainring compatibility: 46-54T, Internal cable routing, Tire clearance: ETRTO 622-40 sizes 47-50-53-55-57-59-61

  2. Fork

     Bianchi Infinito, Flat mount disc 140/160, Thru axle, OLD: 100 mm, Steerer tube diameter: 1"1/8

  3. Headset

     Acros for internal cable routing

• Drivetrain

  1. Shifters

     Sram Force AXS E1

  2. Rear Derailleur

     Sram Force AXS E1, 12sp

  3. Front Derailleur

     Sram Force AXS E1

  4. Crankset

     Sram Force E1, Quarq Spindle Power Meter, 46x33T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm); 175 mm (61 cm)

  5. Bottom Bracket

     Sram Press fit Road 86.5x41

  6. Chain

     Sram Force E1

  7. Cassette

     Sram Force XG 1270 E1, 10-36T, 10-11-12-13-15- 17-19-21-24-28-32-36T

• Brakes

  1. Brakes

     Sram Force E1, Hydraulic disc brake

  2. Brake Levers

     Included in the shifter

  3. Rotor

     FRONT: Sram Paceline, Center Lock, 160 mm / REAR: Sram Paceline, Center Lock, 160 mm

• Wheels

  1. Wheels

     Bianchi Reparto Corse RC 49R, Carbon rim, 49 mm profile, 700x25c, 24h, Tubeless ready, Straight pull spokes, Ratchet system, XDR body

  2. Tire

     Pirelli P Zero Race TLR, 35-622, 120 TPI

• Cockpit

  1. Stem

     Bianchi Reparto Corse integrated handlebar, carbon, for Acros Integrated Cable Routing headset, drop 125 mm, reach 80 mm Size: 90/380 mm (47-50 cm) ; 100/400 mm (53-55 cm) ; 110/400 mm (57-59 cm); 120/420 mm (61 cm)

  2. Handlebar

     Included in the stem

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5 mm thickness, black

• Saddle

  1. Seatpost Clamp

     Bianchi Custom

  2. Seatpost

     Bianchi Infinito, Countervail technology, full carbon, aero-flex shape length: 320 mm, 0 offset (47-55 cm); 380 mm, -20 mm offset (57-61 cm)

  3. Saddle

     Bianchi Carbon Rail, length 260 mm, width 150 mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
