Components and graphic details may differ from the actual model.
TOURNEY 21SP - Step ThroughYUB5M
Spillo Deluxe
Recommended Retail Price
$725.40
Need help?
Maintenance
Find out how to take care of the product
Manuals
Everything you need to know about your bike
Legal warranty
Discover the terms and conditions
Conventional lifetime warranty
Find out all the details about the terms and conditions of the conventional lifetime warranty
Frameset
Frame
Spillo Rubino Deluxe 28″Rigid Alloy 6061
1.1/8″ size: 47-55, O.L.D.135mm
Fork
28″Road 1.1/8″
Headset
1.1/8″X26T Steel Silver
Drivetrain
Shifters
Shimano 7-Speed Ez-Fire plus, 2F-alloy, for V- Brake,
black, Index Wire/2050mm
Left Shifter 3-Speed Ez-Fire plus, 2F-alloy, for V-Brake,
black, Index Wire/1800mm
Crankset
Crankset TCXE6-VZ(A4P6) 48X38X28
black/steel silver/steel silver
Cassette
Shimano AMFTZ5007428 7-speed 14-28 w/thread
Rear Derailleur
Shimano, RD-TY500, Tourney, 6/7-speed, diretc
attachement type, w/wheel type cable guide, bulk
Bottom Bracket
CH 52-68 diagonal cotterless/bolt L:127mm 4pcs w/
bolt ENM
Rear Derailleur
Shimano, FD-TY510-TS3, Tourney, top-swing, dual-pull,
for rear 6/7speed, band type (w/31.8mm adapter), CS
angle:63-66 for 48T.CL:47.5/50mm
Chain
Shimano CN-LG500, 10sp
Brakes
Brakes
V-brake set HJ- 621ADX-SV silver Al. L:103mm 90/2
pipes ENM w/ ID 5mm Pipe cap
Hub
Rear: KT-A15F Alloy silver 36H, silver QR, MQSP141NSI A:109-
B:126-C:149 M9X100X108
Front: KT-A1ER Alloy Lathing natural/36H /quick- release
135X145 Threaded FW:40,5mm
Brake Lever
included in the shifter
Cockpit
Stem
MTS-C299N-5 (C297) Adjustable Alloy High polished
Silver E:90 DIA:25.4 L:180mm
Handlebar
HL-NR-AL-16 High polished an. Silver alloy W:590
R:26 DIA:25.4 BS:33 DG silver
Wheels
Wheels
28/622X19 Freeway D-Wall Al balck 36H D:6.5 HBP
Tire
700X35C 37-622 C-1880 Xpedium
Saddle
Seatpost
SP-242 Alloy silver L:350mm DIA:27.2mm
Saddle
Selle Royal RIO renna Brown (8073), RVS, silver steel
rail, w/clamp
Seatpost Clamp
Alloy Silver Dia:31.8mm Quick-Release, Silver
Accessories
Pedals
body/PP-Black 2#, 9/16″ Boron, BS Ball-Type EN
Front Light
Spanninga JOS Illico
Mudguards
28″ RAPIDO BIA2822-00177 46mm Silver foil,1Nose
rear mudflap aid sliding bridge zinc coated
Rear Light
SPARK RED
Kickstand
CD-122 Alloy, 20”-28” adjustable, Silver/esge black
allen bolt dacromet

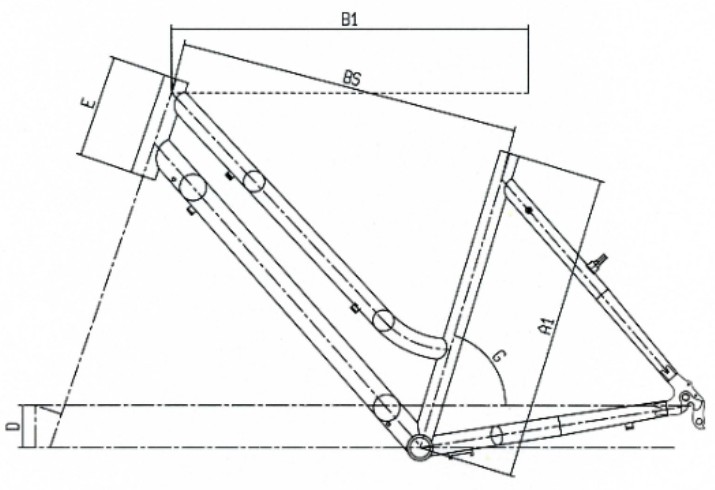

| SIZE | A1 | B1 | BS | D | E | G |
| 43 | 430 | 565 | 540 | 70 | 150 | 73° |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | 4Y – Black, LK – Celeste Vintage |
|---|
